Designed for Drag Race Applications ONLY

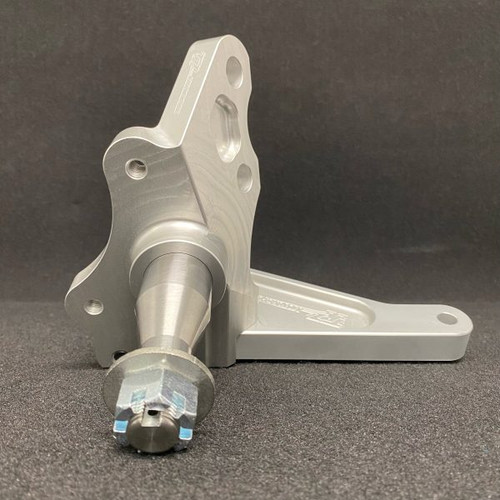

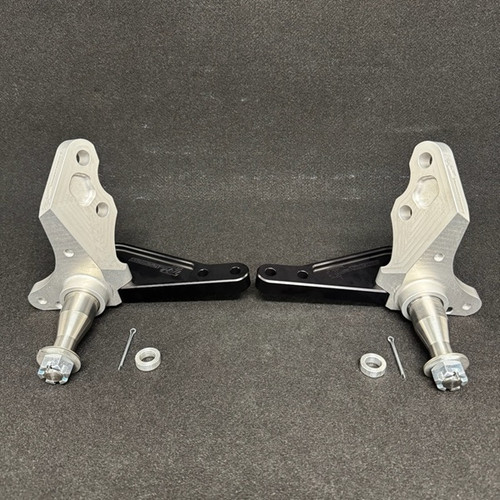

TRZ's 1979-1993 Mustang spindles are constructed from CNC machined aluminum with heat treated stainless steel spindle pins. The unique TRZ 3 piece billet aluminum design allows for no welding points. The spindles will bolt on to your existing a-arms. Designed and proven in drag race applications. TRZ's spindles weigh in at 4 lbs. per spindle significantly droping weight over a stock Fox spindle. For use with V8 style brake kits.
Features
- Billet Aluminum Bolt-On Steering Arms Included
- CNC Machined (IN HOUSE) Billet Aluminum Spindle with Heat Treated Stainless Steel Spindle Pins designed to use race brakes that fit Mustang V8 spindles
- EXCLUSIVE 3-Piece Design. No Welds or Seams!
- Billet Aluminum Bolt-On Steering Arms Included (Avalible in stock length or extended length on the website)
- Steering Arms are designed for use with a 1/2? Rod-End
- Castle Nuts, Keyed Washers, Cotter Pins, Ball Joint Spacers, and Steering Arm Bolts
- Strut Mount Flange is 3/4? (.750?) Wide Factory Foxbody GT Mount
- 2? Drop Spindles: Corrects Front Suspension Geometry and Installed Strut Height on Lowered Vehicles
- Stock Height Spindles: For Stock Ride Height to Slightly Lowered Vehicles these Allow the Strut to be compressed more to Allow Max Strut Extension
- Fits Aftermarket 1987 1993 Mustang STOCK TYPE Disc Brake Setups (V8 Spindle)
- Fits Wilwood Aftermarket 1987 1993 Mustang Disc Brake Setups (V8 Spindle): 140-14420D / 140-4503 (Must trim caliper bracket to use side 2 caliper bracket bolts and source 3/8-16×1? Flat Head Bolts)
- Fits Aerospace Aftermarket 1987 1993 Mustang Disc Brake Setups (V8 Spindle): Multiple Part #s (Must trim caliper bracket to use side 2 caliper bracket bolts)
- THESE WILL NOT WORK WITH ACTUAL STOCK BRAKES
Notes:
- Long travel struts may interfere with spindles / steering arms
- If you currently have Foxbody (1979-1993) Ball Joints, you will need a spacer below the castle nut (Included)
- If you currently have SN95 / New Edge (1994-2004) Ball Joints, you will NOT need a spacer below the castle nut
- This design allows the use of these spindles with ALL commonly available ball joints
- Adjustable A-arms are Highly Recommended
- 1994-2004 Mustang WILL require a 1? or more Narrowed A-Arm, depending on your existing Caster/Camber Plates to use the above 79-93 Fox Spindles
- Ride Height:
- Stock
- Amount of Drop:
- 0.00 in.
- Material:
- Billet Aluminum
- Finish:
- Natural
- Hardware Included:
- Yes
- Steering Arms Included:
- Yes
- Quantity:
- Sold as a pair.
- Make:
- Ford
- Model:
- Mustang (1979-1993)
