TRZ Motorsports long travel long travel a-arms kits are one of the best on the market for light weight drag cars. These arms are extremely light, available in 4130 chromoly or titanium configurations.
This is for the chromoly version. You can find the titanium version in the same category.
Features
- Available in 4130 or Titanium!
- Single Piece Billet Knuckles
- 40 Degrees of Total Travel in Bearing
- 10 Degree Built-In Camber

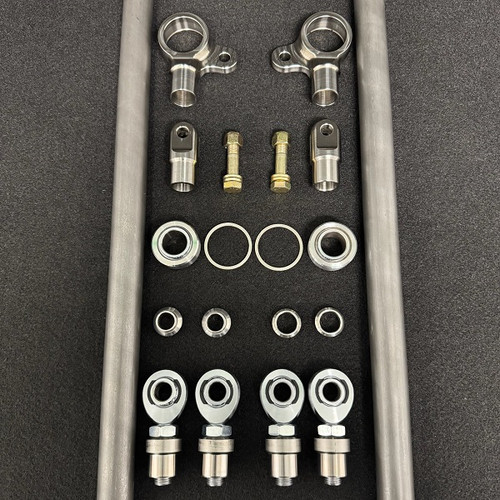

Included in the kit:
- 1 ea. Left and Right Knuckles
- (2) COM Bearings
- (2) Spiral-Lock Retaining Rings
- (1) Set of Mis-Alignment Spacers
- (2) Lengths of tubing 2.5′ (Titanium Kits Include Two Tube Cuts 27.5″ Long)
- (2) Clevis Ends with Hardware
- (4) 1/2-20 Tube Adapters
- (4) 1/2″ x 1/2″ 4130 Rod-Ends
- ADDITIONALLY Titanium Kits Include 2 Lengths of TIG wire
Notes: Lower Stepped Washers “May” Need Modification.
Available – Tapered Stud Adapters to Fit TRZ Billet Mustang Spindles – Designed for SN95 style ball joint taper dimensions.
Available – Titanium Lower Strut Studs for Menscer Billet, Strange GT and AFCO Struts using 5/8″ Lower Studs
Weights:
- 4130 Kit w/Rod Ends = 7lbs 4.1oz
- 4130 Kit w/o Rod Ends = 6lbs 2.4oz
- Titanium Kit w/Rod Ends = 4lbs 5.1oz
- Titanium Kit w/o Rod Ends = 3lbs 3.3oz
- Mustang Tapered Stud Adapters + Hardware (For Both) = 14.9oz
- Titanium Lower Strut Studs (For Both) = 6.9oz
- Control Arm Style:
- Tubular
- Adjustable Lower Arms:
- Yes
- Adjustable Upper Arms:
- N/A
- Control Arm Material:
- Chromoly
- Finish:
- Natural
- Built in Caster:
- N/A
- Control Arm Length:
- N/A
- Cross Pin Material:
- N/A
- Bushings Included:
- Yes
- Lower Arms Bushing Material:
- 4130 Rod-Ends
- Upper Arms Bushing Material:
- N/A
- Ball Joint Included:
- No
- Ball Joint Plate Type:
- N/A
- Built in Limiters:
- No
- Hardware Included:
- Yes
- Quantity:
- Sold as a pair.
