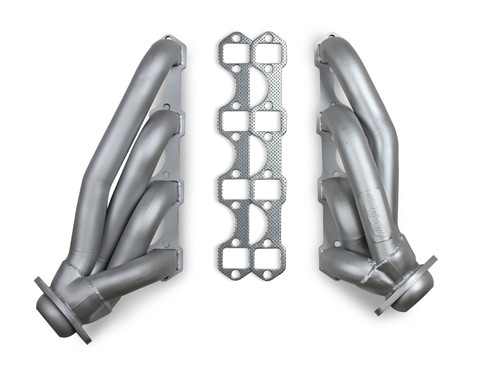

Flowtech Headers are the perfect blend of quality, performance, and value. These 1-3/4" shorty style race headers fit the very popular 5.0L V8 for the Fox-Body Mustang platform. The 1-3/4" tube size is the perfect upgrade for stroker motors and engines that have limited clearance issues and still require a free flowing header.
Features:
Mandrel-bent 409 Stainless Steel tubes provide consistent tubing diameters for smooth flow and increased exhaust velocity
Heavy duty 16-gauge tubing for increased strength and durability
Smooth transition, 1-3/4 diameter primary tubes are used for increased exhaust flow increasing performance and improving throttle response
OE style 2-1/2 ball and socket collector connects to factory exhaust head pipe with no cutting or welding
TIG-welded, machined 3/8 header flange for a leak-free seal and maximum strength
Premium aluminum header gaskets included
Available finishes include: High Temp Black Painted, Ceramic Coated and Polished
These headers are a must upgrade if you are using a cold air intake, cat-back exhaust system or performance cylinder heads
Collector thread size is 3/8-16
- Header Style:
- Shorty
- Header Material:
- 409 stainless steel
- Header Finish:
- Silver ceramic coated
- Weld-Up:
- No
- Primary Tube Outside Diameter (in.):
- 1.750 in.
- Flange Style:
- Standard
- Flange Thickness (in.):
- 0.375 in.
- Collector Attachment:
- Stock flange
- Collector Diameter (in.):
- 2.500 in.
- Collector Reducers Included:
- No
- Collector Reducer Exit Diameter:
- N/A
- Tuned:
- No
- Primary Tube Length (in.):
- N/A
- Cylinder Head Port Shape:
- N/A
- Primary Tube Gauge:
- 16-gauge
- Gaskets Included:
- Yes
- Hardware Included:
- No
- Crossover Pipe Included:
- No
- Crossover Pipe Style:
- N/A
- Crossover Pipe Diameter:
- N/A
- Spark Plug Position:
- N/A
- Catalytic Converter(s) Included:
- No
- Oxygen Sensor Bung:
- N/A
- Quantity:
- Sold as a pair.
- Make:
- Ford
- Model:
- Mustang (1979-1993)
- Engine Family:
- Ford small block Windsor
- Engine Sizes:
- 4.3L/260-5.0L/302
- Transmission:
- Automatic/Manual
- CARB EO Number(s):
- D-245-5
- Emissions:
- California EO Approved
