The fastest and most cost effective way to wire your race car or engine conversion!
Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.
Features
- An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
- The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.
- The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
- This harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.
- Fully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.
Suits: Common US style Delco/Bosch GM alternator connector. Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector. Manual transmission only.

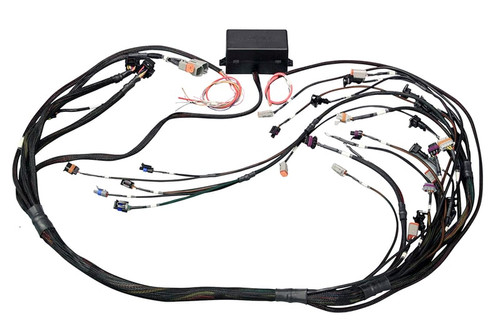

Includes: Engine harness with fuse block and firewall grommet.
Notes: Please confirm your alternator connector (See the product quick start guide) and order an alternator adaptor if required. (HT-040090 or HT-040091) LS2 Ignition coils and harnesses are NOT included.
- Fuel Injection Style:
- Multi-port, Throttle Body
- Terminated Harness:
- Yes
- Battery Connectors:
- No
- Harness Length:
- N/A
- Metering Conector:
- Yes
- Metering Style:
- Speed density
- Injector Connector:
- Yes
- Injector Style:
- EV6
- Coil Connector:
- GM
- Coil Style:
- Harness Required
- Crank Connector:
- GM, 58x
- Cam Connector:
- GM, 4x
- TPS Connector:
- Yes
- Drive By Wire Connector:
- Yes
- IAC Connector:
- No
- IAT Connector:
- Yes
- Water Temp Connector:
- GM
- Oil Pressure Connector:
- Yes
- Fuel Pressure Connector:
- Yes
- Transmission Temp Connector:
- No
- O2 Sensor Connector:
- Expandable Plug
- Drive Shaft Connector:
- No
- Inputs:
- 3
- Output:
- 1
- CAN Connector:
- Yes
- Knock Connector:
- GM
- Fuel Pump Connector:
- Yes
- Fire Wall Connector:
- No
- Fuse Block Included:
- Yes
- Reley Connector:
- Yes
- Releys Included:
- Yes
- Quantity:
- Sold individually.
- Make:
- Haltech
- Model:
- Elite 2000
- Model:
- Elite 2500
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen III/IV (LS-based engines)
- Engine Size:
- 4.8L/294-7.0L/427
- Year:
- 2005-2019
