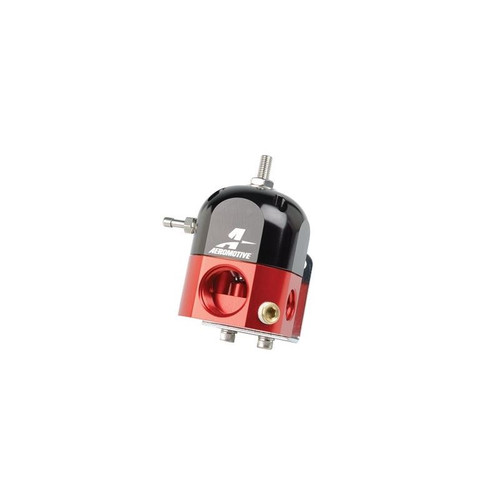

The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or blow-through supercharged engines.
Note:
Requires AN-08 return line from bottom of regulator back to top of the tank.
Features- Pressure Range (psi):
- 3-15
- Regulator Style:
- Return
- Regulator Location:
- Inline
- Boost/Vacuum Reference Port:
- Yes
- Boost/Vacuum Rise Ratio:
- 1:1
- Fittings Included:
- No
- Inlet Quantity:
- One
- Inlet Size:
- -10 AN
- Inlet Attachment:
- Female O-ring threads
- Outlet Quantity:
- Two
- Outlet Size:
- -06 AN
- Outlet Attachment:
- Female O-ring Thread
- Return Fitting Size:
- -08 AN
- Return Attachment:
- Female O-ring thread
- Material:
- Aluminum
- Finish:
- Black/Red Anodized
- Gauge Port:
- Yes
- Mounting Bracket Included:
- Yes
- Rebuildable:
- Yes
- Quantity:
- Sold individually.
- Regulator Usage:
- Carburetor
- Fuel Type:
- Alcohol
- Fuel Type:
- Gasoline
- Fuel Type:
- Flex Fuel
