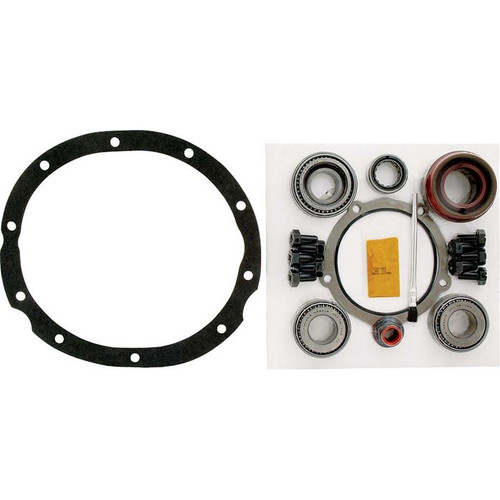

Allstar ring and pinion installation kits are available with or without bearings. Kits contain all the hard-to-find individual parts for a quick, trouble-free installation. 3.062" CARRIER BEARING, STOCK 28SPL PINION SUPPORT, SOLID SPACERKIT INCLUDES: LM603011 CARRIER BEARING RACE 3.062" OD LM603049 CARRIER BEARING 1.781" ID M88010 PINION BEARING RACE M88048 PINION BEARING KIT INCLUDES KOYO BEARINGS
Proposition 65 Warning:
This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
- Differential Case Design Type:
- Ford 9 in.
- Cover Bolts:
- 10
- Ring Gear Bolts:
- 10
- Pinion Spline Count:
- 28
- Ring Gear Rotation:
- Standard
- Axle Shaft Spline Quantity:
- N/A
- Pinion Front Bearing Included:
- Yes
- Tail Bearing Included:
- Yes
- Pinion Bearing Races Included:
- Yes
- Pinion Spacer Shims Included:
- Yes
- Crush Sleeve Included:
- No
- Pinion Seal Included:
- Yes
- Pinion Nut Included:
- Yes
- Carrier Bearings Included:
- Yes
- Carrier Bearing Diameter (in.):
- 3.062 in.
- Carrier Shims Included:
- Yes
- Ring Gear Bolts Included:
- Yes
- Axle Bearings Included:
- No
- Axle Seals Included:
- No
- Cover Gasket Included:
- Yes
- Axle Location:
- Rear
- Quantity:
- Sold as a kit
- Notes:
- Comes with solid pinion spacer. Comes with 3.062 in. carrier bearings.
