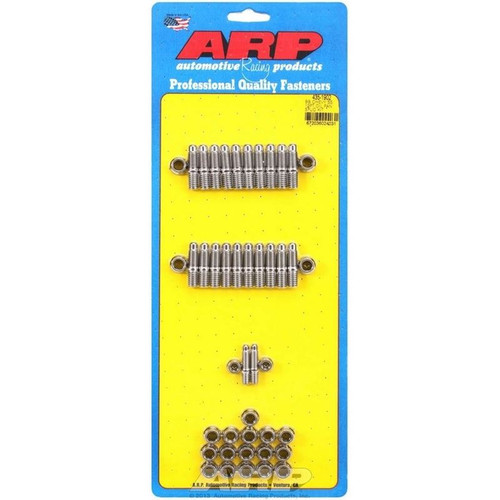

The engineers at ARP spent quite a bit of time developing these highly effective, unique oil pan studs. They're designed to make it as easy as possible to install a pan and seal it properly. You'll note that the studs have a radiused bullet nose that serves to locate the pan rails, then allow the nuts to be easily installed without the worry of cross-threading.
For those who prefer bolts, ARP's got you covered, too. Both are available in black oxide finished chrome moly steel or polished ARP Stainless. Also, you may choose between conventional hex style or the space-saving 12-point nuts. The stud kits come complete with a special locking flanged nut, while the bolt kits come with washers.
- Style:
- Stud
- Nut Style:
- Standard 12-point
- Washer Included:
- Yes
- Material:
- Stainless steel
- Finish:
- Polished
- Quantity:
- Sold as a kit.
- Notes:
- Fits engines using standard 2-piece cork oil pan gasket only.
- Special Attention:
- Anti-seize should be used on all stainless steel fasteners.
- Make:
- Chevrolet
- Engine Family:
- Chevy big block Mark IV
- Engine Sizes:
- 6.5L/396-7.4L/454
- Years:
- 1966-1990
- Engine Family:
- Chevy big block Gen V
- Years:
- 1991-1995
- Engine Family:
- Chevy big block Gen VI
- Years:
- 1996-2000
- Engine Sizes:
- 7.4L/454
