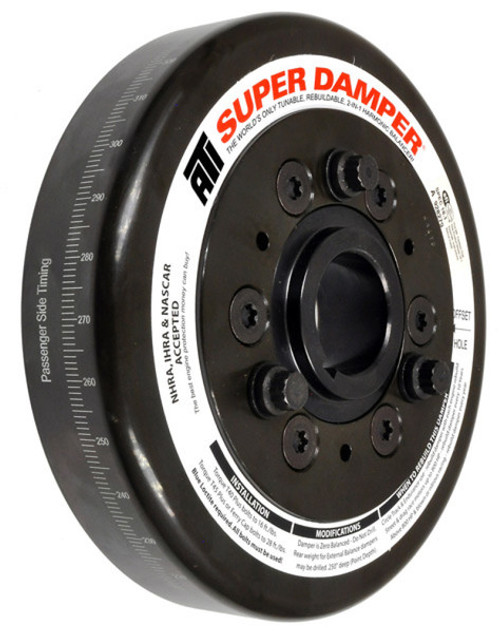

The patented ATI Super Damper standard harmonic balancers are the only crankshaft dampers designed exclusively for high performance engines. Inner and outer shells are available in aluminum or steel, and contain a steel inertia weight. The inertia weights have six (2-ring design) or eight (3-ring design) computer-machined grooves to retain the proper durometer O-rings (dyno tested for each application). Whether you race or just drive on the street, ATI harmonic balancers are the perfect choice.
Note: Designed for Chevy 3-bolt pulley. Requires adapter and shortening the spacer sleeve 0.375 in. to install stock pulleys in the original location.
Features
- Designed For High RPM Applications, Over 6000 RPM
- CNC Machined Outer Shell With 360 Degree Laser Scribed Timing Marks
- Internal Ring & Hub That Is Tunable & Fully Rebuildable
- Exceeds SFI 18.1 Spec
- Many More Applications Available
- Engine Balance:
- Internal
- Safety Rating:
- SFI 18.1
- Degree Markings:
- Yes
- Degree Marking Range:
- 360
- Outside Diameter (in.):
- 7.074 in.
- Keyway Quantity:
- One
- Material:
- Steel
- Construction:
- Elastomer
- Finish:
- Black zinc chromate
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Notes:
- 3-ring design. 1.500 in. wide.
- Make:
- Ford
- Engine Family:
- Ford big block FE
- Engine Sizes:
- 5.4L/332-7.0L/425
- Years:
- 1957-1976
- Crankshaft Pulley Bolt Hole Quantity:
- Designed for Chevy 3-bolt pulley
