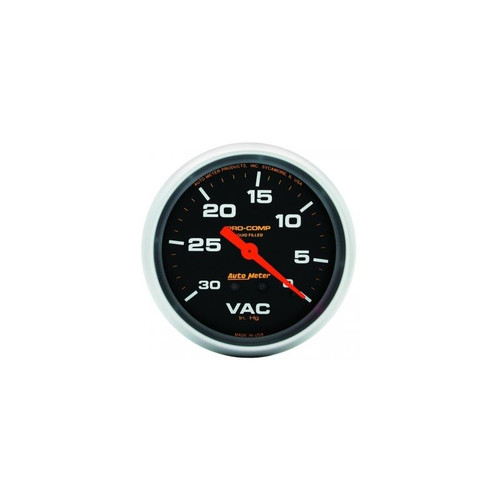

Whether tuning your vehicle for maximum performance or monitoring your driving for maximum fuel economy, AutoMeter's Mechanical Vacuum Gauge has been the solution trusted by professionals for years. An ultra precise bourdon'tube meter movement sits at the heart of this instrument, providing the kind of accuracy and durability necessary to compete at the highest levels. A simple 1/8 in. NPT fitting on the back makes installation easy, and 1/8 in. nylon line and fittings are included.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/8 in. nylon line, T-Fitting, vacuum fitting, compression fittings, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Adapter/Fitting 1/8 in. NPT Male to 1/8 in. compression fitting, 1/8 in. NPT Female to 1/8 in. compression fitting, 1/8 in. NPT to 1/4 in. NPT bushing, T - Fitting Tubing 10 ft. nylon tubing Bulb & Socket 3220 Light Covers Red 3214 & Green 3215 Mounting Hardware 3245
- Style:
- Pro-Comp
- Type:
- Vacuum
- Face Color:
- Black
- Sending Unit:
- Mechanical
- Range:
- 0-30 in. Hg
- Size (in.):
- 2 5/8 in. diameter
- Size (mm):
- 67.00mm diameter
- Sweep:
- Full sweep
- Number Color:
- White
- Pointer Color:
- Red
- Bezel Finish:
- Silver
- Illuminated:
- Yes
- Liquid-Filled:
- Yes
- OEM Replacement:
- No
- Sending Unit Included:
- No
- Quantity:
- Sold individually.
