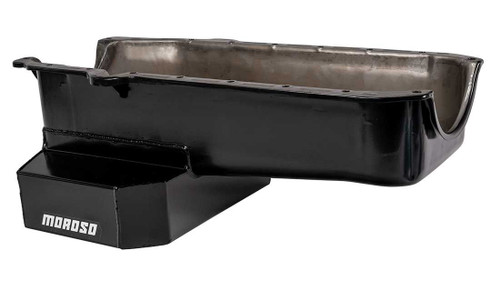

This SBC road race oil pan is for '86 and newer blocks with one piece seal. It is designed for GM '78 and up G-Body chassis and '70 to '81 F-Body chassis, without a cross over exhaust. It has a 7-1/2" depth, 13-3/4" width, and a 10-1/2" long sump, for a 7 quart system capacity. This pan requires one of our pickups.
Oil Pan Features
- 7 qt System Capacity
- Five Trap Door Baffles
- Crank Scraper
- Built In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
Recommended Accessories
- 20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
- 20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
- 20-020 - Pickup for SBC High Volume Oil Pump M55HV
- 20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
- 20-021 - Bolt-On Pickup for Melling M10555 Pumps
- 22-300 - Stud Kit For Oil Pan Mounting Small Block Chevy/Oldsmobile/AMC
- 88-100T – SBC Pre ’85 Oil Pan Gasket
Proposition 65 Warning:
This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
- Rear Main Seal Style:
- 1-piece
- Sump Style:
- Wet
- Stroker Clearanced:
- Yes
- Dipstick Provision:
- Yes
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- 3.750 in.
- Dipstick Location:
- Passenger side
- Sump Location:
- Rear
- Oil Pan Capacity:
- 7.00 quarts
- Oil Pan Depth (in.):
- 7.500 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Zink
- Baffled:
- Yes
- Kicked Out:
- Yes
- Kickout Position:
- Driver and passenger side
- Windage Tray Included:
- Yes
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- Yes
- Drain Plug Thread Size:
- 1/2 in.-20
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Make:
- Make
- Engine Family:
- Chevy small block Gen I
- Engine Sizes:
- 4.4L/267-6.6L/400
- Years:
- 1980-1985
