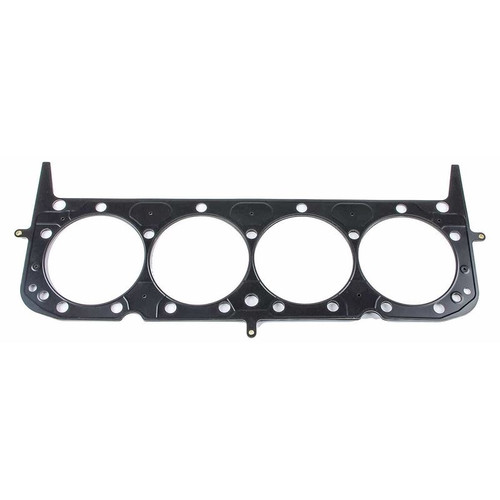

Cometic C5402-030 SBC MLS Head Gasket, 4.160 in. Bore, 0.030 in. Thickness, Each

$86.91
MSRP: $94.98
(You save $8.07 )
(No reviews yet) Write a Review
SKU:
CGSC5402-030
MPN:
C5402-030
UPC:
191070062095
Condition:
New
Weight:
0.65 LBS
Shipping:
Calculated at Checkout

Applies To Continental U.S. orders only

Adding to cart… The item has been added

Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

We have most 0.030' thickness gaskets listed. There are many other thicknesses available if you don't see what your looking for us contact us for price and avalibility.

Available Thickness: .027', .030', .036', .040', .045', .051', .056', .060', .066', .070', .075', .080', .086', .092', .098', 120', .140'


Features
  • MLS gaskets are comprised of three layers of stainless steel
  • Stainless steel increases strength & allows the gasket to rebound
  • Stainless steel also is corrosion resistant
  • The outer layers of the gasket are embossed
  • The outer layers are coated on both sides with Viton
  • Designed to meet the demands of a variety of harsh sealing environments
  • Ideal for both aluminum heads to cast iron blocks & aluminum heads to aluminum blocks
  • Head gaskets under .060" thick are 3 layers
  • Head gaskets .060" & thicker gaskets are 5 layers
  • Bore (in.):
    4.160 in.
    Bore (mm):
    105.664mm
    Gasket Material:
    Multi-layer stainless steel
    Compressed Thickness (in.):
    0.030 in.
    Compressed Volume (cc):
    6.682cc
    Lock Wire:
    No
    Quantity:
    Sold individually.
    Make:
    Chevrolet
    Engine Family:
    Chevy small block Gen I
    Engine Sizes:
    4.9L/302-6.6L/400
    Years:
    1962-2002
    Application Notes:
    Designed for use with Brodix heads.
