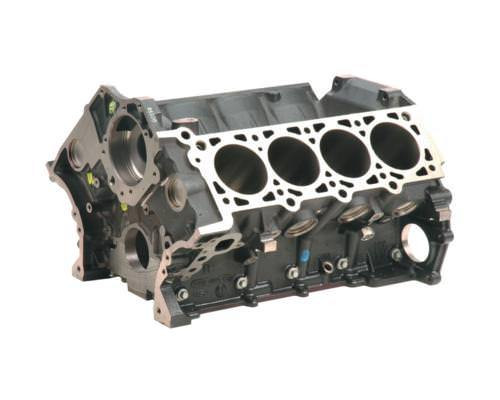

The Boss 5.0 block is a 4.6L deck height cast iron block. The block uses a proprietary iron mix to achieve the strongest possible casting strength with the least porosity and greatest consistency.
- Engine Block Material:
- Cast iron
- Engine Block Style:
- Aftermarket/OEM standard deck
- Deck Height:
- 8.937 in.
- Cylinder Bore Diameter:
- 3.700 in.
- Maximum Bore Diameter:
- N/A
- Cylinder Bore as Shipped:
- 94.0mm
- Finished Cylinder Bores:
- No
- Maximum Stroke:
- N/A
- Main Caps Included:
- Yes
- Main Cap Material:
- Nodular iron
- Main Bolt Style:
- 6-bolt
- Main Journal Type:
- Standard 4.6L Modular
- Rear Main Seal Style:
- 1-piece
- Main Cap Fasteners Included:
- Yes
- Main Bearings Included:
- No
- Engine Block Weight (lbs.):
- 165 lbs.
- Raised Cam Location:
- No
- Cam Bearings Included:
- No
- Freeze Plugs Included:
- Yes
- Finish:
- Natural
- Quantity:
- Sold individually.
- Notes:
- Does not have a finish milled head deck or cylinder bores. Block requires milled deck, finished bores, and then hone each bore specifically for their combination.
- Make:
- Ford
- Engine Family:
- Ford modular V8
