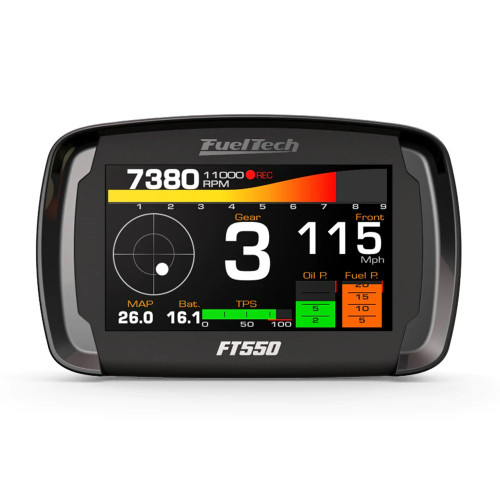

FuelTech's FT550 is more than an ECU offering electronic fuel injection, integrated dashboard, data acquisition, and power management. The FT550 is designed for engines with up to 12 cylinders, or up to 4 rotors, and features 14 programmable inputs and 24 outputs. In addition to offering all of the features and functions of the FT450, including touchscreen display, 4 programmable display screens, customizable splash screen, sequential injection and ignition, O2 closed loop, active traction control, integrated boost controller, internal datalogger, progressive and PRO-Nitrous controls, odometers, drag racing features, the FT550 is loaded with additional features such as electronic throttle control, inclinometer gauge, integrated GearController with strain gauge sensor on the shifter for more efficient gear shift cuts, built-in accelerometer (G-meter), and gyroscope. The FT550 is housed in a high-quality ABS case and is IP67 rated for marine and off-road applications.
- ECM Included:
- Yes
- Fuel Injection Style:
- Multi Port EFI
- User Interface Included:
- 4.3 in. display, touch screen
- Self Tuning:
- No
- User Tunable:
- Yes
- Wiring Harness Included:
- No
- Transmission Controller Included:
- Yes
- Drive-By-Wire Capable:
- Yes
- Drive-By-Wire Channels:
- 1
- Traction Control:
- Yes
- Timing Control Compatible:
- Yes
- Injectors Included:
- No
- Fuel Injector Connector Style:
- N/A
- High Impedance Injectors:
- Up to 16
- Low Impedance Injectors:
- No
- Injector Size (lbs/hr):
- N/A
- Ignition System Included:
- No
- Coils:
- Up to 8
- Ignition Coil Connector:
- N/A
- Reluctor Wheel Tooth Quantity:
- N/A
- Inputs:
- 14
- Outputs:
- 24
- Wideband Controller:
- No
- Wideband Channels:
- 1
- Oxygen Sensor Included:
- No
- Boost Control:
- Yes
- Nitrous Control:
- Yes
- Launch Control:
- Yes
- Engine Protection:
- Yes
- CANBUS Enabled:
- Yes
- CANBUS Networks:
- 2
- Knock Control:
- No
- Knock Channels:
- N/A
- VVT Control:
- Yes
- VVT Channels:
- 4
- Metering Style:
- Speed density
- MAP Sensor Included:
- Yes
- Multi-fuel Capable:
- Yes
- Flex Fuel Compatible:
- Yes
- Cam Sensor Included:
- No
- IAT Sensor Included:
- No
- TPS Sensor Included:
- No
- IAC Motor Included:
- No
- VR/Mag Inputs:
- Yes
- Data Logger:
- Yes
- Quantity:
- Sold individually.
- Make:
- Universal
- Transmission:
- Universal
