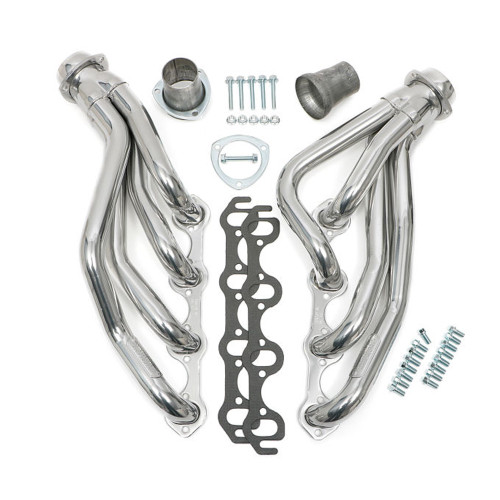

- Header Style:
- Mid-length
- Header Material:
- Steel
- Header Finish:
- Silver ceramic coated
- Weld-Up:
- No
- Primary Tube Outside Diameter (in.):
- 1.625 in.
- Flange Style:
- Standard
- Flange Thickness (in.):
- 0.313 in.
- Collector Attachment:
- Ball and socket flange
- Collector Diameter (in.):
- 3.000 in.
- Collector Reducers Included:
- Yes
- Collector Reducer Exit Diameter:
- 2.500 in.
- Tuned:
- No
- Primary Tube Length (in.):
- N/A
- Cylinder Head Port Shape:
- Oval
- Primary Tube Gauge:
- 16-gauge
- Gaskets Included:
- Yes
- Hardware Included:
- Yes
- Crossover Pipe Included:
- No
- Crossover Pipe Style:
- N/A
- Crossover Pipe Diameter:
- N/A
- Spark Plug Position:
- Angle/Straight
- Catalytic Converter(s) Included:
- No
- Oxygen Sensor Bung:
- N/A
- Quantity:
- Sold as a pair.
- Notes:
- Due to clearance issues, may not work on aftermarket cylinder heads. Recommended that the engine be centered between the sheet metal that extends down from the shock tower mounts on both sides of the engine as evenly as possible.
