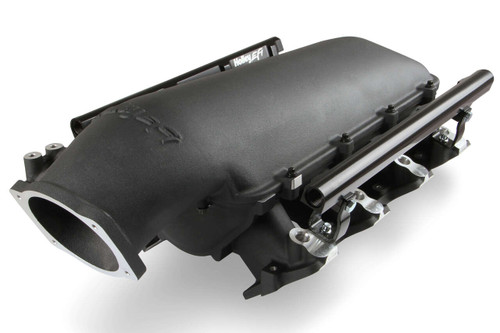

- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
- Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
- Modular design allowing the use of the included plenum entry
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
- High volume fuel rails for eight and sixteen injector configurations.
- Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
Notes: Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height: Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed) Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness
Instructions
Emissions Warning
Federal and State regulations may restrict Product installation to pre-regulation (Model Year 1974 or earlier), or “Competition,” or “Racing” Vehicles. Competition or Racing Vehicles may be operated exclusively in
1) events organized by recognized bodies, authorizing permits for participating drivers.
2) racing event qualification, and
3) practice associated with events.
Installation of such restricted Products in Model Year 1975 and later street driven Vehicles, including driving Competition or Racing Vehicles to the racetrack, is likely to be considered illegal “Tampering” or a “Defeat Device” subject to U.S. Federal and State penalties
- Engine Block Style:
- Stock/OEM standard deck
- Style:
- Tunnel Ram/Multi-port
- Basic Operating RPM Range:
- 3,500-8,000
- Material:
- Aluminum
- Finish:
- Black Powdercoated
- Height:
- 9.250 in.
- Intake Section Included:
- Complete
- Fuel Rails Included:
- Yes
- Aftermarket Fuel Rail Required:
- Yes
- Carburetor Quantity:
- N/A
- Carburetor Mounting:
- N/A
- Throttle Body Bore Size:
- 105mm
- Has Bosses:
- Yes
- Bosses Machined:
- Yes
- Boss Quantity:
- Eight
- Injectors Included:
- No
- Throttle Body Included:
- No
- EGR:
- No
- Quantity:
- Sold as a kit.
- Notes:
- Top-feed single injector manifold and fuel rail kit.
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen III/IV (LS-based engines)
- Engine Sizes:
- 6.0L/364-6.2L/376
- Years:
- 2005-2019
- Cylinder Head Style:
- Rectangular port
