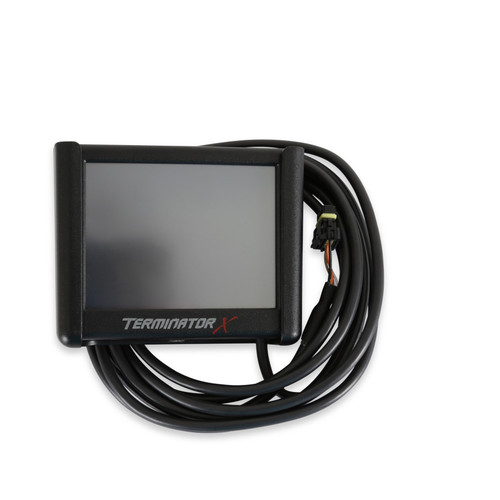

The Holley EFI 5-inch Digital Dash comes out of the box, ready to plug and play with your Gen 1 Sniper EFI, Terminator X or X MAX, and Holley EFI Dominator or HP ECU. The 5-inch digital touch screen display is pre-loaded with 3 easy to read layouts that provide critical system information, such as Throttle Position, Manifold Air Pressure, Air Fuel Ratio, Battery Voltage, Engine Coolant Temperature, RPM, and Speed, thanks to the provided Magnetic GPS Antenna included in the kit!
The Holley EFI 5-inch Digital Dash also offers Tuning for Terminator X and Terminator X Max, Gen 1 Sniper EFI, and Holley EFI Dominator and HP ECUs. Want a cool place to keep your handheld, with the use of a CAN Splitter (p/n: 558-465) you can mount your 3.5-inch digital touch screen in your engine bay, allowing you to see vital system information while working on your project.
The 5-inch Digital Dash also includes two dash mounting stand offs, and suction cup, allowing you to quickly mount the dash to most flat surfaces in the vehicle, without drilling any holes.
Features
- This Part number is NOT Compatible with Sniper EFI 2 Products. The Sniper EFI 2 5-inch Dash is part number 553-200X.
- Plug and play Display with all Gen 1 Sniper EFI Models - installation consists of plugging in the 5-inch Dash to the Sniper EFI CAN connector, and mounting the GPS antenna!
- Plug and Play with all Terminator X – Terminator X Max – and Holley EFI HP and Dominator ECU’s.
- Expandable storage via included micro-SD allows you to quickly access the ECU calibrations, datalogs, or any other files you may use with your Sniper EFI System
- Built-in Calibration Wizard allows you to quickly build a base engine calibration for your Sniper EFI or Terminator X powered vehicle, without the need of a laptop. (Wizard feature is disabled for HP and Dominator ECU’s)
- Includes suction cup mount and two different length stand offs for different mounting configurations, just like the 3.5" but with a larger easier to use screen
- 3 default background skins pre-loaded with the option to customize the existing layouts to read exactly what information you want to see!
- Quickly swipe between multiple monitor screens, with customizable parameters (tune, warm-up, race, drive, etc.)
- Built-in GPS Speedometer (Magnetic Antenna included)
- Provides Real-time ECU tuning, allowing you to dial in your AFR, Ignition Timing, or any other handheld tune able value, such as IAC or Acceleration Enrichment!
- Expandable storage via included micro-SD allows you to quickly access the ECU calibrations, datalogs, or any other files you may use with your Holley EFI System
- Plug-and-play Display with all Sniper EFI Models - installation consists of plugging in the 5" Dash to the Sniper EFI CAN connector, and mounting the GPS antenna!
- No stylus required - capacitive touch, just like your smart phone
- Convenient dimming feature for night-time driving, simply press the Sniper EFI icon on the background to quickly dim or brighten the screen
- Built-in Calibration Wizard allows you to quickly build a base engine calibration for your Sniper EFI powered vehicle, without the need of a laptop
- Includes suction cup mount and two different length stand offs for different mounting configurations
- Unlock the capabilities of existing 5-inch displays with the latest firmware update.
Instructions
Note: Not compatible with Sniper 2 Required ECU Firmware: Sniper 1 EFI Firmware Version: Any. Holley EFI Firmware Version: 6.0.030 Terminator X Firmware Version: 3.0.100
