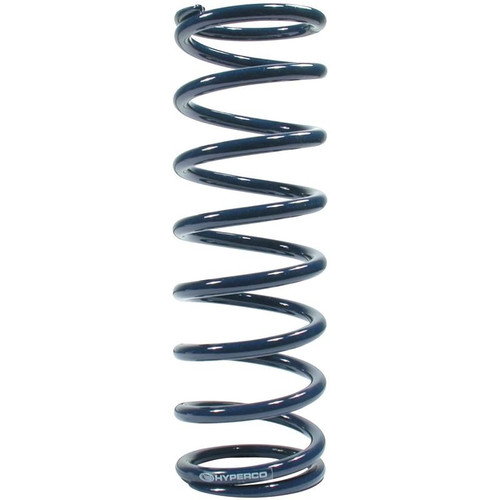

Coil-Over Springs are high-performance, aftermarket suspension springs primarily used in Motorsports and Motor Racing. Hyperco?s coil-over springs, also known as Hypercoils', offer a wide range of free lengths and rates which provide the suspension designer latitude in creating a motion ratio for the suspension system that will permit an optimized damper or spring assembly to control a wide range of wheel travel. Hypercoils are available in two different spring design concepts: OBD and UHT.
Optimum Body Diameter (OBD) is the standard spring design for Hyperco coil-over springs. Featuring a unique design concept that adjusts the body diameter of the spring relative to the end coils, an OBD spring enables Hyperco to take full advantage of our ultra-high tensile spring materials by optimizing the applied stress through adjusting the spring's body diameter.
Features
- More usable deflection
- Less weight
- Increased rate linearity
- More resistance to bowing
- Fits all standard hardware
- Maintains free length and installed height
- Coilover Spring Inside Diameter (in.):
- 2.500 in.
- Coilover Spring Inside Diameter (mm):
- 63.50mm
- Coilover Spring Length (in.):
- 10.000 in.
- Coilover Spring Length (mm):
- 254.00mm
- Progressive Rate Spring:
- No
- Coilover Spring Rate (lbs/in):
- 85 lbs./in.
- Spring Finish:
- Blue Powdercoated
- Quantity:
- Sold individually.
