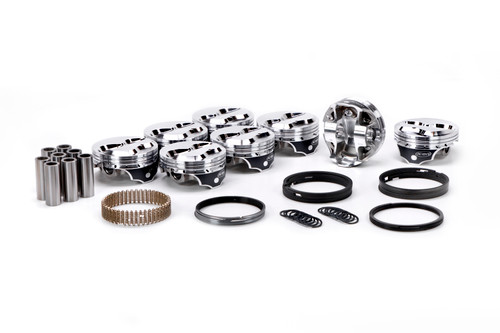

Forged from 2618 or 4032 alloy, Premium series include all of the features of FHR pistons with the addition of precision, CNC-machined valve reliefs and crown, pressure fed oiling, and skirt and pin boss struts for added durability. Pistons listed accept 1/16" (top), 1/16" (second), and 3/16" (oil) rings unless noted. Sets of eight include wrist pins and spiral locks
- Piston Head Type:
- Dome
- Bore (in.):
- 4.185
- Bore (mm):
- 106.299mm
- Recommended Stroke (in.):
- 3.875 in.
- Piston Style:
- Dome, with two valve reliefs
- Compression Height (in.):
- 1.062 in.
- Piston Volume (cc.):
- 7.8
- Piston Material:
- Forged aluminum
- Piston Avg Weight (g.):
- N/A
- Piston Ring Thickness:
- 1.50mm x 1.50mm x 3.00mm
- Quantity:
- Sold as a set of 8.
- Notes:
- Lateral gas ports. Solid dome design. Spacer ring included. 9.025 inch deck heights. Fits 64cc cylinder heads.
- Wrist Pin Included:
- Yes
- Wrist Pin Style:
- Press-fit or floating
- Piston Pin Diameter (in.):
- 0.927 in.
- Wrist Pin Retainers Included:
- No
- Piston Pin Wall Thickness:
- N/A
- Piston Pin Material:
- N/A
- Piston Rings Included:
- No
- File Fit:
- N/A
- Gas Ported:
- N/A
- Gapless:
- N/A
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen I
- Engine Sizes:
- 6.6L/400
- Years:
- 1970-1980
- Recommended Rod Length:
- 6.000 in.
- Dome Height (in.):
- 0.218 in.
