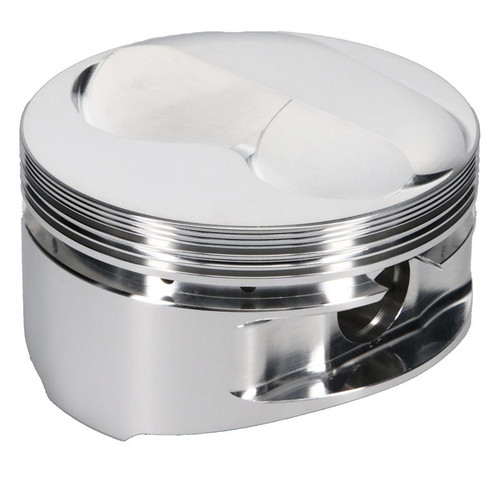

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
- Piston Head Type:
- Dome
- Bore (in.):
- 4.155
- Recommended Stroke (in.):
- 3.480 in.
- Piston Style:
- Dome, with two valve reliefs
- Compression Height (in.):
- 1.250 in.
- Piston Volume (cc.):
- 13
- Piston Material:
- Forged aluminum
- Piston Avg Weight (g.):
- 471
- Quantity:
- Sold as a set of 8.
- Wrist Pin Included:
- Yes
- Wrist Pin Style:
- Press-fit or floating
- Piston Pin Diameter (in.):
- 0.927
- Wrist Pin Retainers Included:
- No
- Piston Pin Wall Thickness:
- 0.15
- Piston Pin Material:
- 5115
- Piston Pin Length:
- 2.750
- Piston Rings Included:
- No
- File Fit:
- N/A
- Gas Ported:
- N/A
- Gapless:
- N/A
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen I
- Engine Sizes:
- 6.6L/400
- Years:
- 1970-1980
- Recommended Rod Length:
- 6.000 in.
- Application Notes:
- 9.000 inch block height. 377-380 cubic inch. Will not fit Pro Topline or Brodix 11X cylinder heads.
- Cylinder Head:
- Chevrolet 23 Degree 20/30
- Top Ring Thickness:
- 1/16 in.
- Second Ring Thickness:
- 1/16 in.
- Oil Ring Thickness:
- 3/16 in.
