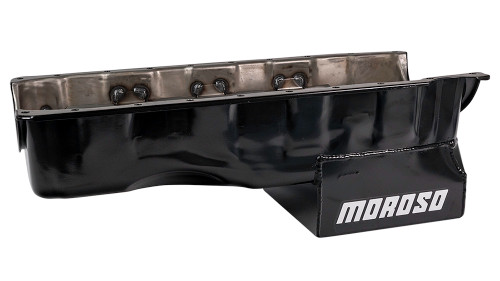

Steel, Wet Sump, 6.5 Quart Capacity, 8" Deep, 8.75" Sump Length
Engine Application: Gen V and Gen VI
Fits: Most Chassis (except 1962-'67 Chevy II, V-8 Vega/Monza, and 1955-'57 Chevy)
Features
- Designed with a sump that has flat sides to alleviate header clearance problems with some exhaust header brands
- Accepts up to a 4.25" stroke with steel rods and a 4.090" stroke with aluminum rods
- Features a crank scraper and uni-directional windage tray for horsepower
- Trap door baffling and an anti-climb baffle for oil control under hard acceleration and deceleration
| PART NO. | RECOMMENDED PICKUPS |
| 24440 | Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump |
| 24441* | Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump |
| 24445 | Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump |
*Offset to middle of sump for more consistent oil pressure under braking
| PART NO. | OIL PUMP/PICKUP PACKAGE |
| 22175 | Moroso Standard Volume Package |
| 22185 | Moroso High Volume Package |
| 22186* | Moroso High Volume Package/Front Style Offset Pickup |
| 22163 | Moroso Billet Aluminum Oil Pump, BBC, High Volume |
| 22164 | Moroso Billet Aluminum Oil Pump, BBC, Standard Volume |
| PART NO. | AVAILABLE OPTIONS |
| 25970 | Universal Dipstick Kit |
| 25971 | Universal Dipstick Kit, Braided Stainless Flex Tube |
| 25973 | Universal Dipstick Kit, Twist Lock |
| 38360 | Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8 |
| 38560 | Self-Locking Oil Pan Bolts, BBC and Pontiac V8 |
| 93154 | Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Gen 5 & 6 |
- Rear Main Seal Style:
- 1-piece
- Sump Style:
- Wet
- Stroker Clearanced:
- No
- Dipstick Provision:
- Yes
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- 4.250 in.
- Dipstick Location:
- Passenger side
- Sump Location:
- Rear
- Oil Pan Capacity:
- 6.50 quarts
- Oil Pan Depth (in.):
- 8.000 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Zinc iridited
- Baffled:
- Yes
- Kicked Out:
- No
- Windage Tray Included:
- Yes
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- Yes
- Drain Plug Thread Size:
- N/A
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Make:
- Chevrolet
- Engine Family:
- Chevy big block Gen V
- Years:
- 1991-1995
- Engine Family:
- Chevy big block Gen VI
- Years:
- 1996-2000
- Engine Sizes:
- 7.4L/454
