With Billet End Seals

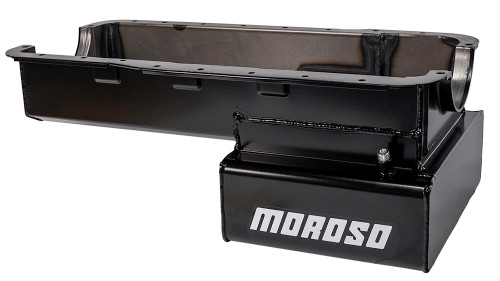

Fits: Ford including Australian, Mercury and Cobra Kit Car front sump applications (except Mustang II) Usage: Road and Drag Race, including street. Ford 302 Front Sump Oil Pan, Road Race, clears 4-Bolt Blocks.
Steel, Wet Sump, Front Sump, 7 Quart Capacity, 8" Deep
Engine Application: 289-302
Features
- Billet end seals for greater sealing
- Clears all 4-bolt main caps including 4-bolt rear
- Accepts 3.40 stroke with most steel rods
- Four Trap Doors keep oil contained in oil pump pickup area
- Anti-slosh baffle keeps oil from leaving the sump
- Features oil temperature fitting and drain plug
- Compatible with most starter/flywheel combinations
- For use with 1-piece, rear sump oil pan gasket
- Includes O-ring drain plugs
| PART NO. | RECOMMENDED PICKUP |
| 24523 | Fits: Moroso Part No. 22201, Stock or M68 or M68HV or M10688 style pumps |
| PART NO. | AVAILABLE OPTIONS |
| 22928 | Main Cap Girdle for 289-302 |
| 22930 | Louvered Windage Tray, 289-302 |
| 25970 | Universal Dipstick Kit |
| 25971 | Universal Dipstick Kit, Braided Stainless |
| 25973 | Universal Dipstick Kit, Twist Lock |
| 38191 | Windage Tray, Mounting Studs, 289-302 |
| 38390 | Oil Pan Mounting Stud Kit, Bullet Nose |
| 38393 | Oil Pan Stud Kit, SBF Fabricated Pans |
| 93160 | Oil Pan Gasket, Ford 302, Late, Smooth Rail |
| 22201 | High Volume, Oil Pump |
- Rear Main Seal Style:
- 1-piece
- Sump Style:
- Wet
- Stroker Clearanced:
- Yes
- Dipstick Provision:
- Yes
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- 3.400 in.
- Dipstick Location:
- Passenger side
- Sump Location:
- Front
- Oil Pan Capacity:
- 7.00 quarts
- Oil Pan Depth (in.):
- 8.000 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Clear zinc
- Baffled:
- Yes
- Kicked Out:
- Yes
- Kickout Position:
- Passenger side
- Windage Tray Included:
- No
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- No
- Drain Plug Thread Size:
- 1/2 in.-20
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Notes:
- Will not fit Mustang II Applications. Fits Cobra kit cars. Clears all 4-bolt main caps.
- Make:
- Ford
- Engine Family:
- Ford small block Windsor
- Engine Sizes:
- 5.0L/302
- Years:
- 1968-2001
