Fits: COPO Camaro '16-up and rear sump applications (check measurements) Drag Race Baffling Weighs 7.44 lbs less than the factory 2016-up Camaro cast oil pan assembly

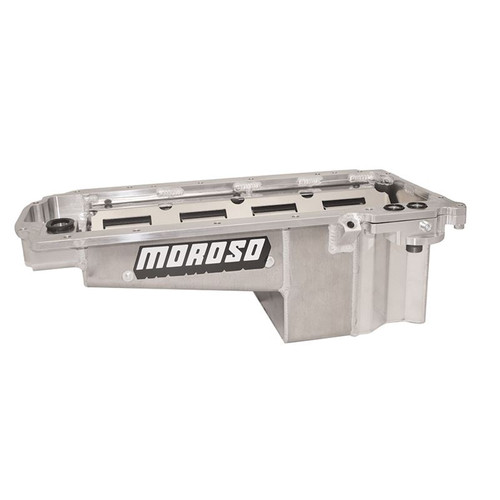

GM LT, Drag Race, COPO Camaro '16-up Aluminum Wet Sump, 7 Quart Capacity, 7-5/8" Deep
Engine Application: GM LT Series
Due to the O.E.M. GM LT oil pans having the oil pump pickup built into the oil pan, our LT oil pan has a thick billet aluminum O-ringed rail that incorporates a removable pickup, a billet front sump and a location to mount our billet aluminum spin-on oil filter adapter
Features
- Fabricated aluminum construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction
- Trap door baffle assembly, anti-climb baffle and anti-slosh baffle to keep oil contained in the oil pump pickup area during Drag Racing
- Removable windage tray that wraps around the oil pump pickup for horsepower savings and to keep oil contained in the oil pump pickup area during Drag Racing
- Billet aluminum adapter that allows a 22mm thread Moroso No. 22463 Racing or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
- Included billet aluminum oil filter adapter has a ¼" N.P.T. sensor port
| Part No. | Available Options |
| 22463 | Oil Filter, Moroso Racing |
| 23718 | External Oil Pump Filter Adapter, Gen V LT |
| 23719 | Filter Adapter, Remote, GM Gen V LT |
- Rear Main Seal Style:
- 1-piece
- Sump Style:
- Wet
- Stroker Clearanced:
- No
- Dipstick Provision:
- No
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- N/A
- Dipstick Location:
- N/A
- Sump Location:
- Rear
- Oil Pan Capacity:
- 7.00 quarts
- Oil Pan Depth (in.):
- 7.500 in.
- Oil Pan Material:
- Aluminum
- Oil Pan Finish:
- Natural
- Baffled:
- Yes
- Kicked Out:
- No
- Windage Tray Included:
- No
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- No
- Drain Plug Thread Size:
- N/A
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen V (LT-based engines)
- Engine Sizes:
- 6.2L/376
- Years:
- 2016-2020
- Application Notes:
- This is designed for the 2016 and newer COPO Camaro. Features a billet aluminum spin-on oil filter adapter with a ? in. NPT sensor port that accepts a 22 mm thread Moroso or OEM spin-on oil filter to be mounted in stock location.
