Fits: C-3 & C-4 Corvettes, Kit Cars and other low ground clearance applications.

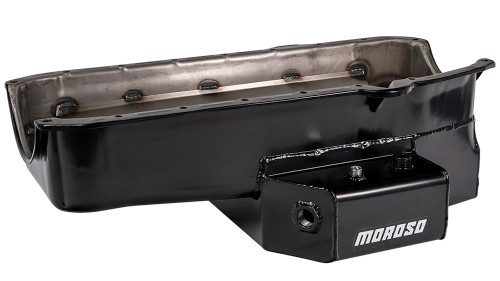

Oil Pan, Steel, Clear Zinc, Wet Sump, 7 Quart Capacity, Road Race Baffled
Engine Application: SBC 1986 & newer engine blocks with one-piece seal and passenger side dipstick
Features
- Clears 4.125" stroke with most steel rods
- Fits 4 bolt Dart, GM and Merlin main caps
- 5 trap door baffles for oil control in Road Racing, also an excellent Drag Race pan
- Has a built-in crank scraper, removable louvered windage tray for horsepower
- Rear Sump is 7" deep, 13-7/8" wide and 12" long
- Includes 20mm fitting for oil level sensor, optional 20mm plug No. 22738 available for use when the factory low warning sensor is not going to be utilized
- Use stock dipstick; also has a 1 4" NPT fitting for Moroso Universal Dipsticks Nos. 25970, 25971 & 25973
- Steel with a clear zinc finish
- Compatible with most starter/flywheel combinations
| PART NO. | RECOMMENDED PICKUPS |
| 24811 | Fits: M55 style Standard Volume Oil Pump in Moroso Part Nos. 21811 and 21812 |
| 24814 | Fits: M55HV style High Volume Oil Pump in Moroso Part Nos. 21811 and 21812 |
| 24817 | Fits: M155HV style Pumps, 7" deep pans, Moroso Part Nos. 21811 and 21812, 21816 |
| 24819 | Fits: M10552/M10555 style Pumps, 7" deep pans, Moroso Part Nos. 21811 and 21812, 21816 |
| PART NO. | AVAILABLE OPTIONS |
| 22738 | Plug, 20mm x 1.5, Male with Copper Washer |
| 25970 | Universal Dipstick Kit |
| 25971 | Universal Dipstick Kit, Braided Stainless Flex Tube |
| 25973 | Universal Dipstick Kit, Twist Lock |
| 38551 | Oil Pan Flange Head Bolts, SBC |
| 93151 | Oil Pan Gasket, 86-up block with a 1 piece rear main seal |
- Rear Main Seal Style:
- 1-piece
- Sump Style:
- Wet
- Stroker Clearanced:
- Yes
- Dipstick Provision:
- Yes
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- 4.125 in.
- Dipstick Location:
- Passenger side
- Sump Location:
- Rear
- Oil Pan Capacity:
- 7.00 quarts
- Oil Pan Depth (in.):
- 7.000 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Clear zinc
- Baffled:
- Yes
- Kicked Out:
- Yes
- Kickout Position:
- Driver and passenger side
- Windage Tray Included:
- Yes
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- Yes
- Drain Plug Thread Size:
- 1/2 in.-20
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Notes:
- Includes 20mm fitting for oil level sensor. If not using the sensor it requires Moroso plug #22738 (sold separately).
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen I
- Engine Sizes:
- 5.0L/305-5.7L/350
- Years:
- 1986-1995
