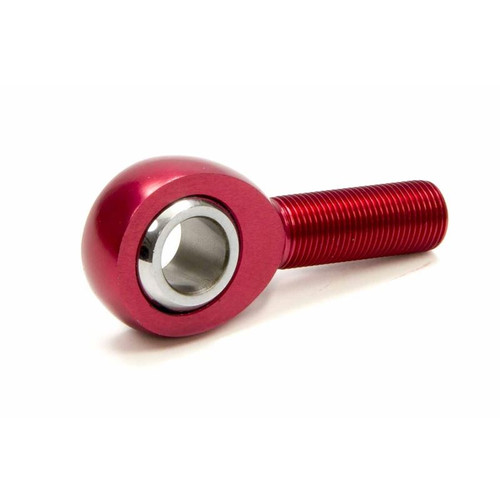

QA1's AM Aluminum Series rod ends are male rod ends that are designed specifically for performance applications where weight is a concern. With a Nylon/PTFE injection molded race, these rod ends are completely self-sealing and self-lubricating, keeping dirt and debris out. Over 10% lighter than traditional three-piece aluminum rod ends, the AM Series rod ends are the most wear-resistant aluminum design available. BALL 52100 Bearing Steel Heat Treated Hard Chrome Plated Precision Ground RACE Nylon/PTFE Self-Lubricating Self-Sealing BODY Aircraft Aluminum Color Anodized Red as Standard EXCLUSIVE FEATURES Metal to Metal Support for Heavy Shock Loads Increased Cross-Sectional Thickness for Greater Tensile Strength
- Thread Size:
- 5/8-18 in.
- Thread Direction:
- Left Hand
- Attachment:
- Male threads
- Construction:
- 2-piece
- Lining Material:
- Nylon/PTFE
- Jam Nut Included:
- No
- Thread Length:
- 1.625 in.
- Head Bore Size:
- 0.625 in.
- Head Diameter:
- 1.500 in.
- Head Width:
- 0.750 in.
- Grease Fitting:
- No
- Centerline Length:
- 2.625 in.
- Heat-Treated:
- Yes
- Ball Width:
- 0.750 in.
- Misalign Angle (degrees):
- 16 degrees
- Static Load Capacity:
- 8,600 lbs.
- Material:
- Aluminum
- Finish:
- Red Anodized
- Quantity:
- Sold individually.
