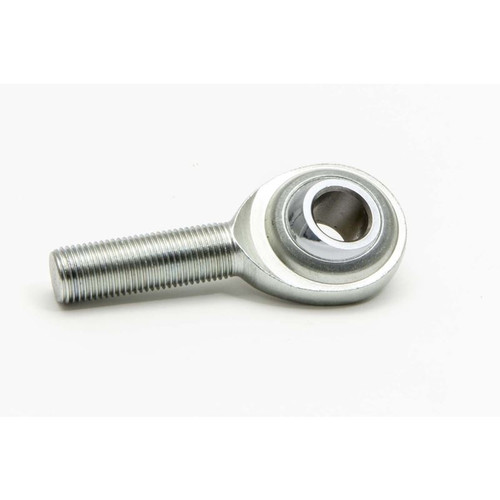

For a traditional carbon steel two-piece rod end, QA1 offers its CM Carbon Steel Series rod ends. These metal-to-metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads. BALL: 52100 Bearing Steel Heat Treated Hard Chrome Plated Precision Ground BODY: Carbon Steel Protective Coated for Corrosion Resistance Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1.
- Thread Size:
- 3/8-24 in.
- Thread Direction:
- Right Hand
- Attachment:
- Male threads
- Construction:
- 2-piece
- Lining Material:
- Nylon/PTFE
- Jam Nut Included:
- No
- Thread Length:
- 1.250 in.
- Head Bore Size:
- 0.375 in.
- Head Diameter:
- 1.000 in.
- Head Width:
- 0.500 in.
- Grease Fitting:
- No
- Centerline Length:
- 1.938 in.
- Heat-Treated:
- Yes
- Ball Width:
- 0.500 in.
- Misalign Angle (degrees):
- 22 degrees
- Static Load Capacity:
- 6,232 lbs.
- Material:
- Carbon steel
- Finish:
- Zinc plated
- Quantity:
- Sold individually.
