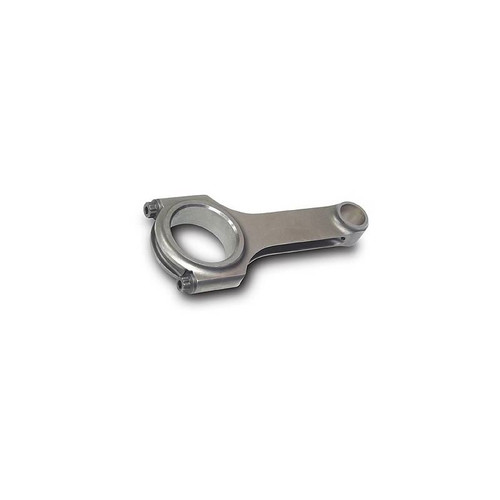

SCAT connecting rods feature the same high-quality craftsmanship that has led Scat to the fore front of the performance industry. SCAT rods are made from a 2-piece chromoly steel forging to ensure maximum strength and durability. Scat offer a complete line of Small and Big-Block Chevy, Small and Big-Block Ford, Honda and many more in both the I-Beam and H-Beam designs. Precision finished at SCAT on the newest and most modern machinery available by SCAT's master machinists.
Features
- Length Center to Center (in.):
- 6.000 in.
- Beam Style:
- H-beam
- Material:
- Forged 4340 steel
- Finish:
- Shot-peened and tumbled
- Wrist Pin Style:
- Floating
- Pin End Bore Diameter:
- 0.927 in.
- Pin End Width (in.):
- N/A
- Rod Journal Diameter (in.):
- 2.100 in.
- Big End Bore Diameter (in.):
- 2.2250 in.
- Big End Width (in.):
- 0.940 in.
- Connecting Rod Bolt Diameter:
- 7/16 in.
- Connecting Rod Bolt Brand:
- ARP
- Rod Bolt Material:
- 8740 chromoly steel
- Fastener Tensile Strength (psi):
- 180,000 psi
- Connecting Rod Bolt Head Style:
- 12-point
- Cap Retention Style:
- Cap screw
- Weight Matched Set:
- Yes
- Approximate Weight (g):
- 616
- Magnafluxed:
- No
- Clearanced for Stroker:
- Yes
- Advertised Horsepower Rating:
- N/A
- Advertised RPM Rating:
- N/A
- Quantity:
- Sold as a set of 8.
- Notes:
- Custom pistons are required when using connecting rods with any length other than OE length
- Long Part Number:
- 2-350-6000-2100-S
- Short Part Number:
- 6600021S
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen I
- Engines:
- 4.4L/262-6.6L/400
- Years:
- 1967-2000
- Engine Family:
- Chevy small block Gen II (LT-based engines)
- Engines:
- 5.7L/350
- Years:
- 1992-1997
