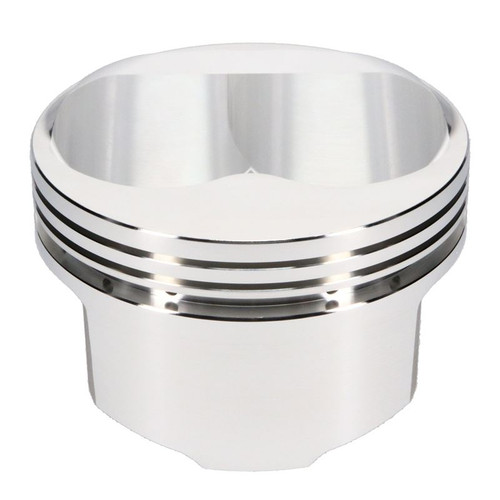

JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminum alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)
- Piston Head Type:
- Dome
- Bore (in.):
- 4.060
- Recommended Stroke (in.):
- 3.480 in.
- Piston Style:
- Dome, with two valve reliefs
- Compression Height (in.):
- 1.260 in.
- Piston Volume (cc.):
- 11
- Piston Material:
- Forged aluminum
- Piston Avg Weight (g.):
- 477
- Quantity:
- Sold as a set of 8.
- Wrist Pin Included:
- Yes
- Wrist Pin Style:
- Press-fit or floating
- Piston Pin Diameter (in.):
- 0.927
- Wrist Pin Retainers Included:
- No
- Piston Pin Wall Thickness:
- 0.15
- Piston Pin Material:
- 5115
- Piston Pin Length:
- 2.750
- Piston Rings Included:
- No
- File Fit:
- N/A
- Gas Ported:
- N/A
- Gapless:
- N/A
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen I
- Engine Sizes:
- 5.7L/350
- Years:
- 1967-2002
- Recommended Rod Length:
- 6.000 in.
- Cylinder Head:
- Chevrolet 23 Degree 20/30
- Top Ring Thickness:
- 1/16 in.
- Second Ring Thickness:
- 1/16 in.
- Oil Ring Thickness:
- 3/16 in.
