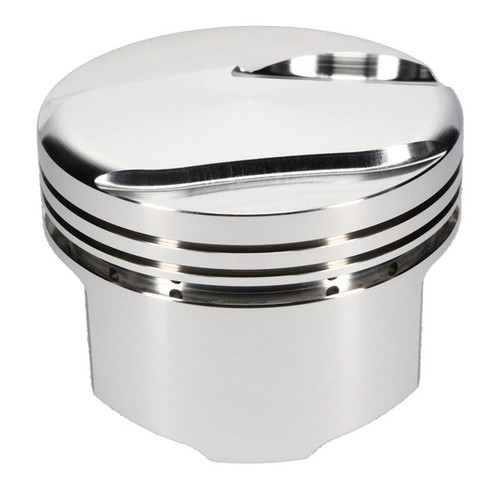

JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminum alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)
- Piston Head Type:
- Dome
- Bore (in.):
- 4.310
- Recommended Stroke (in.):
- 4.000 in.
- Piston Style:
- Dome, with single valve relief
- Compression Height (in.):
- 1.645 in.
- Piston Volume (cc.):
- 14
- Piston Material:
- Forged aluminum
- Piston Avg Weight (g.):
- 659
- Quantity:
- Sold as a set of 8.
- Wrist Pin Included:
- Yes
- Wrist Pin Style:
- Press-fit or floating
- Piston Pin Diameter (in.):
- 0.990
- Wrist Pin Retainers Included:
- Yes
- Piston Pin Wall Thickness:
- 0.15
- Piston Pin Material:
- 5115
- Piston Pin Length:
- 2.930
- Piston Rings Included:
- No
- File Fit:
- N/A
- Gas Ported:
- N/A
- Gapless:
- N/A
- Make:
- Chevrolet
- Engine Family:
- Chevy big block Mark IV
- Years:
- 1970-1990
- Engine Family:
- Chevy big block Gen V
- Years:
- 1991-1995
- Engine Family:
- Chevy big block Gen VI
- Years:
- 1996-2000
- Engine Sizes:
- 7.4L/454
- Recommended Rod Length:
- 6.135 in.
- Application Notes:
- 466 cubic inch. Closed chamber designed to fit Edelbrock 110cc and GM Signature series cylinder heads.
- Cylinder Head:
- Closed Chamber
- Top Ring Thickness:
- 5/64 in.
- Second Ring Thickness:
- 5/64 in.
- Oil Ring Thickness:
- 3/16 in.
