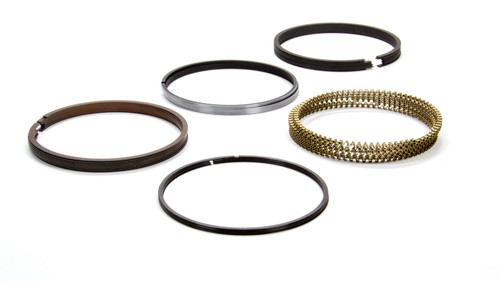

Gapless® Top Ring File Fit Piston Ring Sets
Independent dyno tests proved that the Total Seal Gapless® Top Ring Sets can deliver more horsepower and torque than conventional piston rings. File fit ring sets include Maxseal ductile iron Gapless® top rings, conventional second rings, and standard or special, low tension oil rings for eight cylinders. Low tension ring sets deliver a 25% reduc-tion in tension when compared to standard oil rings. All sets listed below require file fitting.
- Bore (in.):
- 4.040 in.
- Bore (mm):
- 102.616mm
- Top Ring Included:
- Yes
- Top Ring Thickness:
- 0.043 in.
- Top Ring Material:
- Ductile Iron
- Top Ring Facing Material:
- Natural
- Second Ring Included:
- Yes
- Second Ring Thickness:
- 0.043 in.
- Second Ring Material:
- Cast iron
- Second Ring Facing Material:
- Natural
- Oil Ring Included:
- Yes
- Oil Ring Thickness:
- 3.0mm
- Oil Ring Material:
- Stainless Steel
- Oil Ring Facing Material:
- Natural
- Oil Ring Tension:
- Low
- Oil Ring Tension Rating:
- 11 lb.
- Piston and Ring Oversize (in.):
- N/A
- Piston and Ring Oversize (mm):
- N/A
- Gapless:
- Yes
- Gas Ported:
- No
- File Fit:
- Yes
- Quantity:
- Sold as a set.
