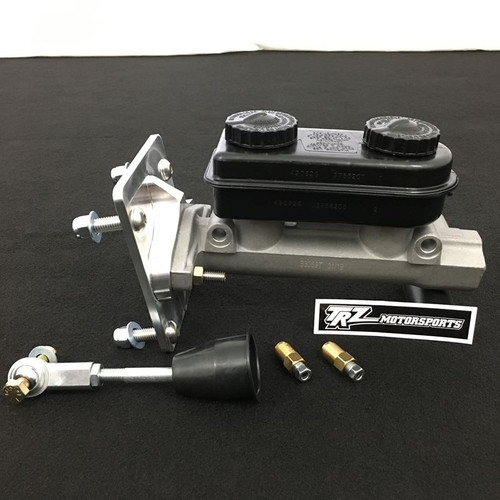

TRZ Motorsports manual master cylinder adapter plates, convert to a Chrysler (Strang Engineering) style master cylinder easily with this TRZ Motorsports Billet Aluminum Adapter Plate. Includes a Strang Engineering master cylinder and correct heim joint to mount to brake pedal.
Using All Wheel Disc brakes
Use 2 lb residual pressure valves if mounted at or below the level of the calipers
Using With Drum Brakes
Any line supplying drum brakes will require a 10 lb residual pressure valve
Recommendation
5.5 to 1 pedal ratio
2 Piston Disc Front / Drum Rear Plus a B3367
4 Piston Disc Front / Drum Rear Plus a B3367
2 Piston Disc Front / 2 Piston Disc Rear
2 Piston Disc Front / 4 Piston Disc Rear
4 Piston Disc Front / 2 Piston Disc Rear
Spindle Mount Front / 4 Piston Disc Rear
Notes
Port closest to the push-rod flows the most volume of fluid. This port needs to be plumbed to the brakes requiring more capacity
Silicone Brake Fluid Is Not Recommended
Features
- Positions master cylinder level to avoid leaks and brake rod stresses
- Allows the use of a Chrysler style master cylinder
- Hardware included
- A B3360TA 1.032 bore master cylinder is used on 4 piston brakes on all 4 corners
- Adapter Material:
- Billet aluminum
- Adapter Finish:
- Natural
- Hardware Included:
- Yes
- Master Cylinder Material:
- Aluminum
- Master Cylinder Finish:
- Natural
- Master Cylinder Bore Size:
- 1.032 in.
- Master Cylinder Stroke:
- 1.550 in.
- Bowl Design:
- Dual
- Mounting Hole Quantity:
- 2 holes
- Mounting Flange Center to Center Distance (in.):
- 3.250 in.
- Remote Reservoir:
- No
- Reservoir Included:
- Yes
- Reservoir Material:
- Plastic
- Master Cylinder Cap Included:
- Yes
- Pushrod Included:
- Yes
- Mounting Brackets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Make:
- Buick
- Model:
- Century (1978-1987)
- Model:
- Regal (1978-1981)
- Make:
- Chevrolet
- Model:
- El Camino (1978-1987)
- Model:
- Malibu (1978-1988)
- Model:
- Monte Carlo (1978-1987)
- Make:
- Oldsmobile
- Model:
- Cutlass (1978-1987)
- Model:
- Cutlass Calais (1978-1987)
- Model:
- Cutlass Cruiser (1980-1987)
- Model:
- Cutlass Salon (1978-1987)
- Model:
- Cutlass Supreme (1978-1987)
- Make:
- Pontiac
- Model:
- Bonneville (1981-1986)
- Model:
- Grand Prix (1978-1987)
- Model:
- LeMans (1978-1983)
