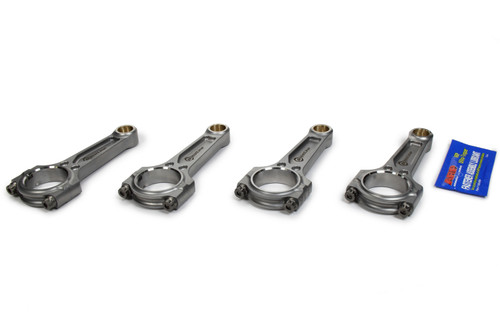

Ideally suited to high-horsepower, forced-induction, or nitrous engines, BoostLine Connecting Rods feature a three-pocket beam design that offers 60% more bending strength when compared to traditional H-beam rods. Precision finished, honed, and sized in Mentor, Ohio from premium 4340 steel, connecting rods are fitted with ARP bolts and precision-honed wrist pin bushings. Sold in sets of eight.
- Length Center to Center (in.):
- 5.433 in.
- Beam Style:
- I-beam
- Material:
- Forged 4340 steel
- Finish:
- Shot-peened
- Wrist Pin Style:
- Floating
- Pin End Bore Diameter:
- 0.827 in.
- Pin End Width (in.):
- 0.900 in.
- Rod Journal Diameter (in.):
- 1.772 in.
- Big End Bore Diameter (in.):
- 1.8900 in.
- Big End Width (in.):
- 0.855 in.
- Rod Bolt Diameter:
- 3/8 in.
- Rod Bolt Brand:
- ARP
- Rod Bolt Material:
- ARP2000 alloy
- Fastener Tensile Strength (psi):
- 200,000 psi
- Rod Bolt Head Style:
- 12-point
- Cap Retention Style:
- Cap screw
- Weight Matched Set:
- Yes
- Approximate Weight (g):
- 588
- Magnafluxed:
- No
- Clearanced for Stroker:
- Yes
- Advertised Horsepower Rating:
- 1,250 hp
- Advertised RPM Rating:
- 10,000 rpm
- Quantity:
- Sold as a set of 4.
- Make:
- Honda
- Engine Family:
- Honda 4-cylinder
- Engine Sizes:
- 1.8L/1797cc-1.8L/1797cc
- Years:
- 1994-2001
