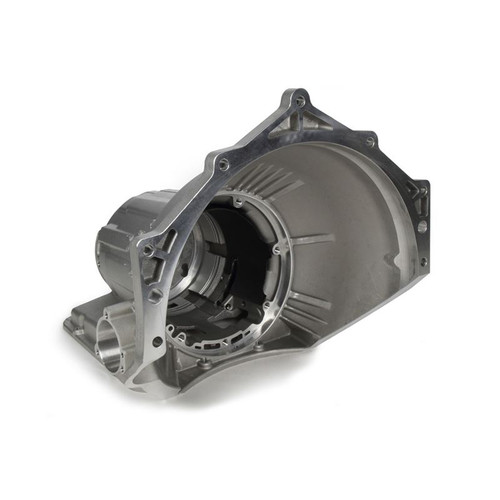

ATI 400011 Supercase 400 Transmission SFI Cases W/Chevy Bellhousing, Aluminum, Each

ATI 400011 Supercase 400 Transmission SFI Cases W/Chevy Bellhousing, Aluminum, Each

$2,258.08
(No reviews yet) Write a Review
SKU:
ATI400011
MPN:
400011
Condition:
New
Weight:
43.45 LBS
Shipping:
Calculated at Checkout

Applies To Continental U.S. orders only

Adding to cart… The item has been added

The new cast aluminum T400 SuperCase is the result of over 2 years of development. Designed in-house at ATI, and cast here in the USA, and machined at ATI on 4-Axis Horizontal CNC machines, the T400 SuperCase features improved fluid pathways to assure better performance and will accept any of ATI’s SFI bellhousings, along with the Reid bell (with slight modifications) and Browell cans.


Features
  • Heavy-duty 356-T6 cast aluminum case meeting SFI 4.1 specs with no internal or external shield needed
  • Made in the USA and machined in-house at ATI using only two fixturing set-ups to provide optimum accuracy
  • Accepts OEM pans, extension housings and 99% of all stock internal components
  • CNC machined minimum depth valve body passages yield extremely fast transbrake releases and quicker shift times
  • Accepts all current ATI Super Bells for many engines and other bells on the market
  • Features additional center support lugs to provide additional 2nd gear strength, with a modified pressure plate supplied
  • Provisions for three extra bolts added to help secure the center support and intermediate pressure plate
  • Increased thickness extension housing/output shaft bearing area provides extra support for 4x4 units
  • Roller bearing for output shaft (bushing available by request)
  • Cooler lines are 1/4" NPT to accept PG quick-connect lines and other popular cooler hoses
    • Transmission Case Material:
    Aluminum
    Transmission Case Finish:
    Natural
    Adjustable Trans-Brake Release:
    No
    Flexplate Shield Built In:
    No
    Flexplate Shield Rating:
    SFI 30.1
    Transmission Shield Built In:
    Yes
    Transmission Shield Rating:
    SFI 4.1
    Roller Bearing:
    No
    Quantity:
    Sold individually.
    Notes:
    Includes Chevy bellhousing.
    Transmission Make:
    Reid
    Transmission Type:
    Super Hydra 400
