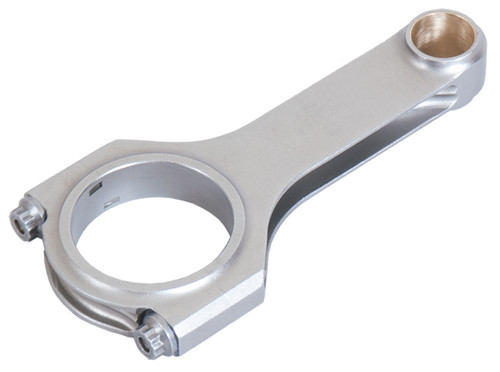

The strength and durability that racing demands at an economical price. Forged rods are sized and finished in the U.S.A. and fitted with ARP 7/16", 190,000 PSI cap screw bolts (some include ARP L-19, 265,000 PSI bolts). Rods feature precision alignment sleeves to positively locate the rod cap, ensuring big end bore size and eliminating cap walk. Sold in weight-matched sets of eight, unless specified.
- Length Center to Center (in.):
- 5.400 in.
- Beam Style:
- H-beam
- Material:
- Forged 4340 steel
- Finish:
- Shot-peened
- Wrist Pin Style:
- Floating
- Pin End Bore Diameter:
- 0.927 in.
- Pin End Width (in.):
- 1.060 in.
- Rod Journal Diameter (in.):
- 2.100 in.
- Big End Bore Diameter (in.):
- 2.2250 in.
- Big End Width (in.):
- 0.831 in.
- Connecting Rod Bolt Diameter:
- 7/16 in.
- Connecting Rod Bolt Brand:
- ARP
- Rod Bolt Material:
- 8740 chromoly steel
- Fastener Tensile Strength (psi):
- 180,000 psi
- Connecting Rod Bolt Head Style:
- 12-point
- Cap Retention Style:
- Cap screw
- Weight Matched Set:
- Yes
- Approximate Weight (g):
- 605
- Magnafluxed:
- Yes
- Clearanced for Stroker:
- Yes
- Advertised Horsepower Rating:
- 605 hp
- Advertised RPM Rating:
- 7,500 rpm
- Quantity:
- Sold as a set of 8.
- Make:
- Ford
- Engine Family:
- Ford small block Windsor
- Engine Sizes:
- 5.0L/302
- Years:
- 1968-2001
