These ECUs are loaded with T210 software and handheld must be using same software version to display values correctly.

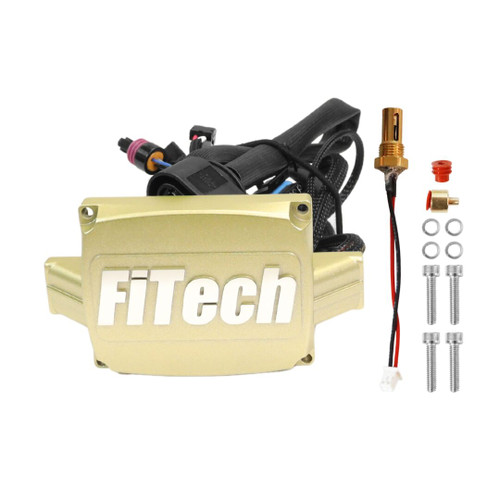

Includes:
- ECU
- Relay Box
- IAT Sensor*
- Brass MAP Extension*
- (4) Screws
- (2) Map Seals
Note: Some systems may not need a Brass MAP Extension. Check your throttle body if it contains a built-in MAP Extension.
Note: Early systems had a push-in IAT Sensor, hole must be tapped with M10x1.00 tap.
Use caution when routing wires during installation, as ECU damage caused by pinched wires is not covered under warranty. Any damage resulting from installation errors will also void the warranty. FiTech Fuel Injection offers the option to install the ECU directly onto your system. If your system is within the valid warranty period and the ECU needs to be replaced, the replacement will be covered at no cost. However, if the warranty has expired or is not valid, labor charges will apply
- ECM Included:
- Yes
- Fuel Injection System Type:
- Replacment Control Module
- User Interface Included:
- No
- Self Tuning:
- Yes
- User Tunable:
- Yes
- Wiring Harness Included:
- Yes
- Transmission Controller Included:
- No
- Drive-By-Wire Capable:
- No
- Drive-By-Wire Channels:
- N/A
- Traction Control:
- No
- Timing Control Compatible:
- No
- Injectors Included:
- No
- Fuel Injector Connector Style:
- N/A
- High Impedance Injectors:
- N/A
- Low Impedance Injectors:
- N/A
- Injector Size (lbs/hr):
- N/A
- Ignition System Included:
- None
- Coils:
- No
- Ignition Coil Connector:
- N/A
- Reluctor Wheel Tooth Quantity:
- N/A
- Inputs:
- 0
- Outputs:
- 0
- Wideband Controller:
- Yes
- Wideband Channels:
- 1
- Oxygen Sensor Included:
- No
- Boost Control:
- No
- Nitrous Control:
- No
- Launch Control:
- No
- Engine Protection:
- No
- CANBUS Enabled:
- No
- CANBUS Networks:
- N/A
- Knock Control:
- No
- Knock Channels:
- N/A
- VVT Control:
- No
- VVT Channels:
- N/A
- Metering Style:
- Speed density
- MAP Sensor Included:
- No
- Multi-fuel Capable:
- Yes
- Flex Fuel Compatible:
- Yes
- Cam Sensor Included:
- No
- IAT Sensor Included:
- No
- TPS Sensor Included:
- No
- IAC Motor Included:
- No
- VR/Mag Inputs:
- No
- Data Logger:
- No
- Power Distribution Included:
- None
- Quantity:
- Sold individually.
- Make:
- Universal
- Transmission:
- Manual
