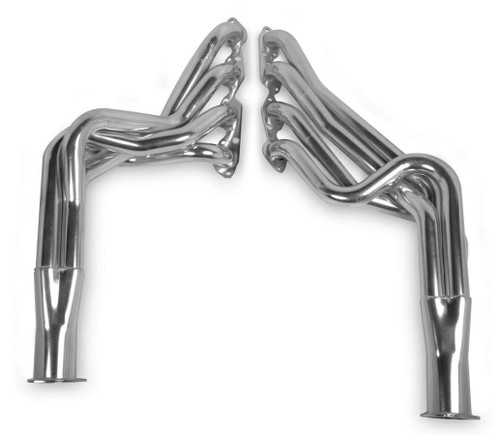

Hooker BlackHeart has quickly become the leader in engine swaps and we are excited to offer our 68-72 GM A-Body LS swap headers in mild steel with 3 different finishes. These 1-7/8" x 3" long-tube headers provide excellent ground clearance as well as component clearance. They are designed to work specifically with our Hooker Transmission Crossmembers (P/N 71222007HKR or 71222021HKR) and Engine Mounts (P/N 71221006HKR or 71221007HKR) for a trouble free install
Features:
1-7/8” primary tubes and long transition 3” collectors with merge spears for maximum flow and increased exhaust velocity
Tight-tucked design provides maximum ground clearance
O2 bung locations optimized for wide-band O2 sensor operation/reliability
Optimized tube bend geometry clears all factory stock vehicle components (including the A/C evaporator case), allows for easy starter motor/spark plug serviceability
Compatible with all GM automatic and Tremec T56/T56 Magnum transmissions
Designed to work specifically with our Hooker Transmission Crossmembers (P/N 71222007HKR or 71222021HKR) and Engine Mounts (P/N 71221006HKR or 71221007HKR) for a trouble free install
Mild steel headers offered in Painted, Silver Ceramic Coated, and Darkside Black Ceramic Coated finishes
All hardware included
- Header Style:
- Long tube one-piece
- Header Material:
- Steel
- Header Finish:
- Silver ceramic coated
- Weld-Up:
- No
- Primary Tube Outside Diameter (in.):
- 1.875 in.
- Flange Style:
- Standard
- Flange Thickness (in.):
- 0.375 in.
- Collector Attachment:
- N/A
- Collector Diameter (in.):
- 3.000 in.
- Collector Reducers Included:
- No
- Collector Reducer Exit Diameter:
- N/A
- Tuned:
- No
- Primary Tube Length (in.):
- N/A
- Cylinder Head Port Shape:
- Round
- Primary Tube Gauge:
- N/A
- Gaskets Included:
- Yes
- Hardware Included:
- Yes
- Crossover Pipe Included:
- No
- Crossover Pipe Style:
- N/A
- Crossover Pipe Diameter:
- N/A
- Spark Plug Position:
- N/A
- Catalytic Converter(s) Included:
- No
- Oxygen Sensor Bung:
- Yes
- Quantity:
- Sold as a pair.
- Make:
- Buick
- Model:
- GS (1970-1972)
- Model:
- GS 350 (1968-1969)
- Model:
- GS 400 (1968-1969)
- Model:
- GS 455 (1970-1972)
- Model:
- Skylark (1969-1972)
- Model:
- Special (1968-1969)
- Make:
- Chevrolet
- Model:
- Chevelle (1968-1972)
- Model:
- El Camino (1968-1972)
- Make:
- GMC
- Model:
- Sprint (1971-1972)
- Make:
- Oldsmobile
- Model:
- 442 (1968-1972)
- Model:
- Cutlass (1968-1972)
- Model:
- Cutlass Sepreme (1968-1972)
- Model:
- F85 (1968-1972)
- Model:
- Vista Cruiser (1968-1972)
- Make:
- Pontiac
- Model:
- GTO (1968-1972)
- Model:
- LeMans (1968-1972)
- Model:
- Tempest (1968-1970)
- Engine Family:
- Chevy small block Gen III/IV (LS-based engines)
- Engine Sizes:
- 4.8L/294-7.0L/427
- Transmission:
- N/A
- CARB EO Number(s):
- No
- Emissions:
- No
