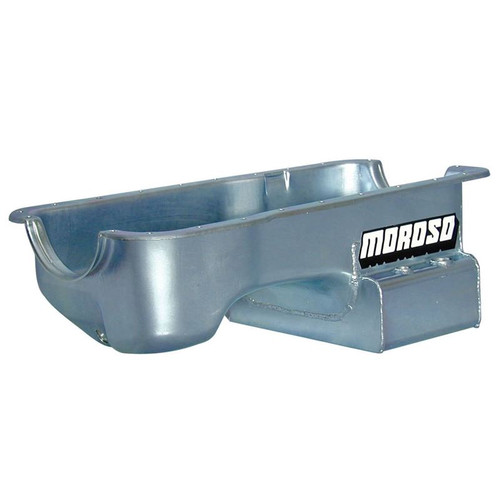

Oil Pan, Steel, Clear Zinc, Kicked-Out Sump, Steel, Wet Sump, Rear Sump, 7 Quart Capacity, 7-1/2" Deep
Engine Application: 289-302
Fits: 1979-Up Mustang, 1981-'88 Thunderbird, Cougar, 1979-'86 Capri and other Ford Rear Sump applications
Features
- Will clear 4-bolt center mains only
- Will not clear 4-bolt front and rear main caps
- Oil retaining baffle
- Engineered to supply oil to sump at all times
- Compatible with most starter/flywheel combinations
| PART NO. | RECOMMENDED PICKUPS |
| 24517 | Fits: Stock or M68, M68HV or M10688 style pumps |
| 24518 | Fits: Moroso Part No. 22201, Stock or M68 or M68HV or M10688 style pumps with Main Support |
*Must use Moroso Main Cap Girdle Part No. 22928
| PART NO. | AVAILABLE OPTIONS |
| 22928 | Main Cap Girdle for 289-302 |
| 22930 | Louvered Windage Tray, 289-302 |
| 25970 | Universal Dipstick Kit |
| 25971 | Universal Dipstick Kit, Braided Stainless |
| 25973 | Universal Dipstick Kit, Twist Lock |
| 38191 | Windage Tray, Mounting Studs, 289-302 |
| 38390 | Oil Pan Mounting Stud Kit, Bullet Nose |
| 93160 | Oil Pan Gasket, Ford 302, Late, Smooth Rail |
| 22201 | High Volume, Oil Pump |
- Rear Main Seal Style:
- N/A
- Sump Style:
- Wet
- Stroker Clearanced:
- Yes
- Dipstick Provision:
- Yes
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- 3.500 in.
- Dipstick Location:
- Driver side
- Sump Location:
- Dual sump
- Oil Pan Capacity:
- 7.00 quarts
- Oil Pan Depth (in.):
- 7.500 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Clear zinc
- Baffled:
- Yes
- Kicked Out:
- Yes
- Kickout Position:
- Driver and passenger side
- Windage Tray Included:
- No
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- No
- Drain Plug Thread Size:
- 1/2 in.-20
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Notes:
- Will not clear 302-351W 4-bolt front and rear main caps without pan and main cap modifications.
- Make:
- Ford
- Engine Family:
- Ford small block Windsor
- Engine Sizes:
- 5.0L/302
- Years:
- 1979-1995
- Model:
- Mustang (1979 and Up)
- Model:
- Thunderbird (1981-1988)
- Model:
- Capri (1979-1986)
