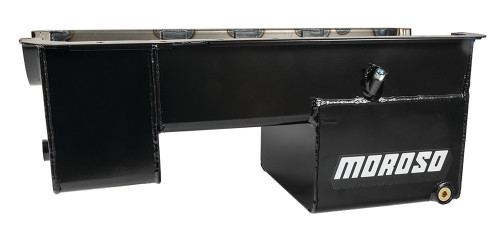

Steel, Wet Sump, Rear Sump, 7 Quart Capacity, 9" Deep
Engine Application: Ford 289-302
Fits: 1979-Up Mustang, 1981-'88 Thunderbird & Cougar, 1979-'86 Capri and other Ford rear sump applications.
Engine Application: 289-302
Now with billet end seals for greater sealing!
Features
- Steel with a clear zinc finish
- 9" deep rear sump
- Clears all 4-bolt main caps including 4-bolt rear
- Accepts 3.40" stroke with most steel rods
- Oil sump retaining system
- Compatible with most starter/flywheel combinations
- Includes O-ring drain plugs
| PART NO. | RECOMMENDED PICKUP |
| 24516* | Fits: Moroso Part No. 22201, Stock or M68 or M68HV or M10688 style Oil Pumps |
*Fits with or without main support girdle
| PART NO. | AVAILABLE OPTIONS |
| 22928 | Main Cap Girdle for 289-302 |
| 22930 | Louvered Windage Tray, 289-302 |
| 25970 | Universal Dipstick Kit |
| 25971 | Universal Dipstick Kit, Braided Stainless |
| 25973 | Universal Dipstick Kit, Twist Lock |
| 38191 | Windage Tray, Mounting Studs, 289-302 |
| 38390 | Oil Pan Mounting Stud Kit, Bullet Nose |
| 38393 | Oil Pan Stud Kit, SBF Fabricated Pans |
| 93160 | Oil Pan Gasket, Ford 302, Late, Smooth Rail |
| 22201 | High Volume, Oil Pump |
- Rear Main Seal Style:
- N/A
- Sump Style:
- Wet
- Stroker Clearanced:
- Yes
- Dipstick Provision:
- Yes
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- 3.500 in.
- Dipstick Location:
- Driver side
- Sump Location:
- Rear
- Oil Pan Capacity:
- 7.00 quarts
- Oil Pan Depth (in.):
- 9.000 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Clear zinc
- Baffled:
- Yes
- Kicked Out:
- No
- Windage Tray Included:
- No
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- No
- Drain Plug Thread Size:
- 1/2 in.-20
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Notes:
- Must use Moroso Main Cap Girdle part number MOR-22928 when using stock oil pump.
- Make:
- Ford
- Engine Family:
- Ford small block Windsor
- Engine Sizes:
- 5.0L/302
- Years:
- 1979-1995
- Model:
- Mustang (1979 and Up)
- Model:
- Thunderbird (1981-1988)
- Make:
- Mercury
- Model:
- Capri (1979-1986)
