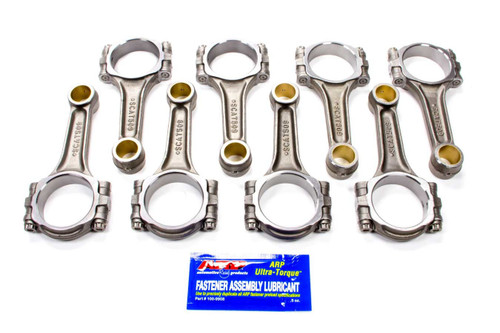

Forged 4340 alloy steel, lightweight I-Beam design, single rib cap design, ARP 3/8" cap screw rod bolts, suited for engines up to 700 HP. Set of 8.
- Length Center to Center (in.):
- 5.090 in.
- Beam Style:
- I-beam
- Material:
- Forged 4340 steel
- Finish:
- Tumbled and shot-peened
- Wrist Pin Style:
- Floating
- Pin End Bore Diameter:
- 0.912 in.
- Pin End Width (in.):
- N/A
- Rod Journal Diameter (in.):
- 2.123 in.
- Big End Bore Diameter (in.):
- 2.2394 in.
- Big End Width (in.):
- 0.830 in.
- Connecting Rod Bolt Diameter:
- 3/8 in.
- Connecting Rod Bolt Brand:
- ARP
- Rod Bolt Material:
- 8740 chromoly steel
- Fastener Tensile Strength (psi):
- 180,000 psi
- Connecting Rod Bolt Head Style:
- 12-point
- Cap Retention Style:
- Cap screw
- Weight Matched Set:
- Yes
- Approximate Weight (g):
- N/A
- Magnafluxed:
- No
- Clearanced for Stroker:
- No
- Advertised Horsepower Rating:
- N/A
- Advertised RPM Rating:
- N/A
- Quantity:
- Sold as a set of 8.
- Long Part Number:
- 2-ICR5090
- Short Part Number:
- 25090
- Make:
- Ford
- Engine Family:
- Ford small block Windsor
- Engines:
- 5.0L/302
- Years:
- 1968-2001
