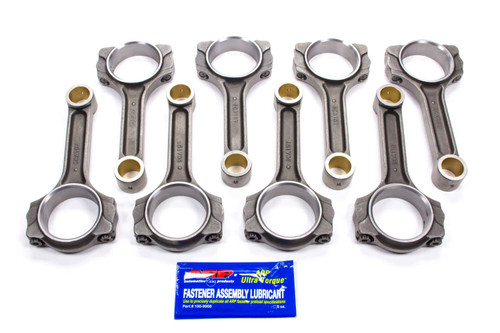

Available for Chevy, Chrysler, and Ford engines. Rods have dowel pins for precise fit and 12-point ARP cap screws. Available in press-fit and bushed versions. Rods are sold in balanced sets of eight
- Length Center to Center (in.):
- 5.400 in.
- Beam Style:
- I-beam
- Material:
- Forged 4340 steel
- Finish:
- Tumbled and shot-peened
- Wrist Pin Style:
- Floating
- Pin End Bore Diameter:
- 0.927 in.
- Pin End Width (in.):
- N/A
- Rod Journal Diameter (in.):
- 2.123 in.
- Big End Bore Diameter (in.):
- 2.2394 in.
- Big End Width (in.):
- 0.830 in.
- Connecting Rod Bolt Diameter:
- 7/16 in.
- Connecting Rod Bolt Brand:
- ARP
- Rod Bolt Material:
- 8740 chromoly steel
- Fastener Tensile Strength (psi):
- 180,000 psi
- Connecting Rod Bolt Head Style:
- 12-point
- Cap Retention Style:
- Cap screw
- Weight Matched Set:
- Yes
- Approximate Weight (g):
- N/A
- Magnafluxed:
- No
- Clearanced for Stroker:
- No
- Advertised Horsepower Rating:
- N/A
- Advertised RPM Rating:
- N/A
- Quantity:
- Sold as a set of 8.
- Long Part Number:
- 2-ICR5400-7/16
- Short Part Number:
- 26540716
- Make:
- Ford
- Engine Family:
- Ford small block Windsor
- Engines:
- 5.0L/302
- Years:
- 1968-2001
