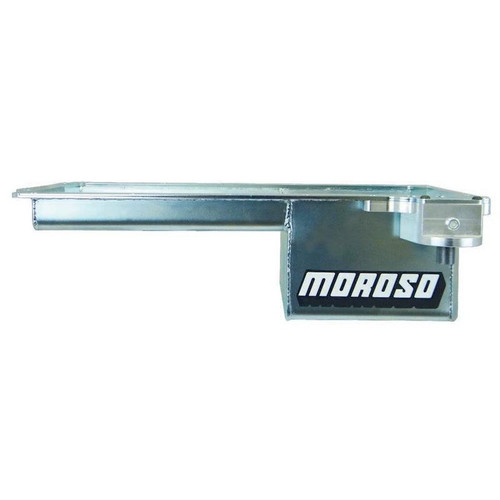

Wet Sump 5 Quart Capacity, 6" Deep, 8.5" Wide, 8.375" Long
Fits: LS Engine Conversions that require a Rear Sump (Check Measurements)
Engine Application: GM LS Series
Features
- Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish
- Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction
- Clears 4.25 stroke with most steel rods
- Front of the oil pan is 1.813 deep to the beginning of the 6 Deep, 8.107" Wide and 8.378" long sump
- Anti-climb baffle; magnetic drain plug and uses a stock dipstick
- Features a billet aluminum adapter that allows a 22mm thread Moroso No. 22463 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
- Included billet aluminum oil filter adapter has a 1/4" N.P.T. sensor port
| PART NO. | RECOMMENDED PICKUPS |
| 24050 | Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122 |
| PART NO. | AVAILABLE OPTIONS |
| 22119 | Oil Pump GM LS, Standard Volume & Pressure |
| 22120 | Oil Pump GM LS, Race |
| 22121 | Oil Pump GM LS High Volume & Pressure |
| 22122 | Oil Pump GM LS Standard Volume/High Pressure |
| 22463 | Racing Oil Filter |
| 23707 | Spin-on Oil Filter Adapter, 90 Degree Remote |
| 23711 | Spin-on Oil Filter Adapter, Sideways Mount |
| 23712 | Spin-on Oil Filter Adapter |
| 23713 | Spin-on Oil Filter Adapter, External Input Inlet, Outbound Rail |
| 24890 | GM LS Oil Pump Flange Reinforcement |
| 22941 | Windage Tray, GM Studs |
| 22943 | Windage Tray, ARP Studs |
| 38306 | Bolt Kit, Oil Pump, 5 Bolts, GM LS |
| 38541 | Oil Pan Mounting Stud Kit |
| 71162 | Dust Shield, GM LS |
| 93152 | Oil Pan Gasket, GM LS |
| 97315 | O-Ring, GM LS Oil Pump Pick Ups, 2 Pack |
| 25030 | GM LS Rear Oil Passage Plug, Billet Aluminum, Two O-rings |
- Rear Main Seal Style:
- N/A
- Sump Style:
- Wet
- Stroker Clearanced:
- No
- Dipstick Provision:
- No
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- 4.250 in.
- Dipstick Location:
- N/A
- Sump Location:
- Rear
- Oil Pan Capacity:
- 5.00 quarts
- Oil Pan Depth (in.):
- 6.000 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Clear zinc
- Baffled:
- Yes
- Kicked Out:
- No
- Windage Tray Included:
- No
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- No
- Drain Plug Thread Size:
- N/A
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen III/IV (LS-based engines)
- Engine Sizes:
- 4.8L/294-6.0L/364
