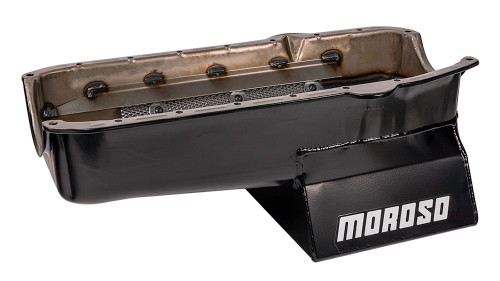

Fits: Most Chassis (Except 1962-67 Chevy II, V8 Vega and Monza). Oil Pan, Steel, Clear Zinc, Engine Application: 1986 and newer blocks with one-piece rear main seal, passenger-side dipstick.
Steel, Wet Sump, 7 Quart Capacity, 8-1/4" deep.
- Rear Main Seal Style:
- 1-piece
- Sump Style:
- Wet
- Stroker Clearanced:
- Yes
- Dipstick Provision:
- Yes
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- 4.125 in.
- Dipstick Location:
- Passenger side
- Sump Location:
- Rear
- Oil Pan Capacity:
- 7.00 quarts
- Oil Pan Depth (in.):
- 8.250 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Clear zinc
- Baffled:
- Yes
- Kicked Out:
- Yes
- Kickout Position:
- Driver and passenger side
- Windage Tray Included:
- Yes
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- Yes
- Drain Plug Thread Size:
- 1/2 in.-20
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Notes:
- This pan has a bolt hole omitted near oil filter due to increased stroke clearance. Best sealing results are achieved when using a one piece rubber gasket. Fits 4 bolt main caps including front and rear.
- Make:
- Chevrolet
- Engine Family:
- Chevy small block Gen I
- Engine Sizes:
- 5.0L/305-5.7L/350
- Years:
- 1986-2002
- Engine Family:
- Chevy small block Gen II (LT-based engines)
- Engine Sizes:
- 5.7L/350
- Years:
- 1992-1997
