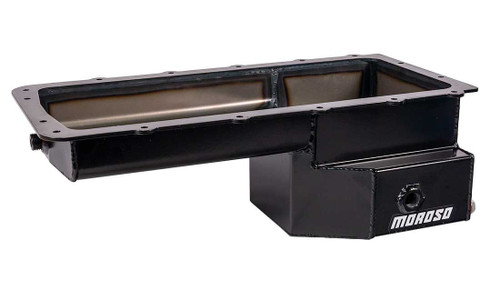

Oil Pan, Steel, Fabricated, Steel, Wet Sump, 7.5 Quart Capacity, 6-5/8" Deep
Engine Application: Ford 5.0 Modular Coyote Engines
Fits: -'79-'93 Mustang with 5.0 Coyote/5.2 Voodoo swaps using BBK or American Racing Headers
Note: If the factory low oil warning sensor is not going to be used, Part No. 22738 20 mm Plug with cooper washer is available
Features
- Pan has a thick steel or billet aluminum rail
- Designed to be used with Moroso Part No. 22936 or 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick
- Steel with a clear zinc finish
- Features a race proven, trap door assembly and anti-slosh baffle that keeps oil contained in the oil pump pickup area during road racing and street/strip usage
- 1/2" NPT fitting for supercharger drain back
- 1/2" NPT fitting for oil temperature sender
- 20 mm fitting for the factory oil level sensor*
- On Gen 1 & 2 Coyote//Voodoo engines use factory oil pump pickup and on Gen 3 Coyote/Voodoo engines use Part No. 24578
| PART NO. | RECOMMENDED PICKUP |
| 24578 | GEN III Oil Pump Pickup-FITS: 5.0 Ford Coyote& 5.2 Voodoo |
| PART NO. | AVAILABLE OPTION |
| 22738 | Factory Low Oil Warning Sensor Plug, 20mm |
| 22936 | Windage Tray, Oil Pan Gasket |
| 22203 | Standard Volume, Oil Pump |
| 38554 | Oil Pan Stud Kit, Coyote 5.0/5.2, Voodoo |
- Rear Main Seal Style:
- 1-piece
- Sump Style:
- Wet
- Stroker Clearanced:
- No
- Dipstick Provision:
- No
- Dipstick Included:
- No
- Maximum Stroke with OE Rod:
- N/A
- Dipstick Location:
- N/A
- Sump Location:
- Rear
- Oil Pan Capacity:
- 7.50 quarts
- Oil Pan Depth (in.):
- 6.625 in.
- Oil Pan Material:
- Steel
- Oil Pan Finish:
- Clear zinc
- Baffled:
- Yes
- Kicked Out:
- Yes
- Kickout Position:
- Driver and passenger side
- Windage Tray Included:
- No
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- No
- Drain Plug Thread Size:
- N/A
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Notes:
- Intended for a 5.0L Coyote engine swap using BBK or American Racing headers. Includes 0.500 in. NPT fitting for oil temperature sender and 20mm fitting for the factory oil level sensor. Designed to be used with factory windage tray and dipstick.
- Make:
- Ford
- Engine Family:
- Ford modular V8
- Engine Sizes:
- 5.0L/302
- Years:
- 1979-1993
- Model:
- Mustang (1979-1993)
