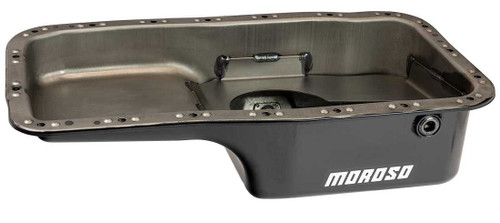

Steel, Wet Sump, 4 Quart Capacity, 5-1/16" Deep
Engine Application: Acura VTEC, Non-VTEC and Honda 1.6L B16A3
- Integrated anti-slosh baffle for additional oil control
- 1/2" N.P.T. turbo/supercharger drain back and 1/2" N.P.T. temperature sender provisions
- Steel with clear zinc finish
- Works with O.E.M. exhaust manifold and most aftermarket exhaust/header combinations
- Uses Stock Oil Pump and Pickup
PART NO. | AVAILABLE OPTIONS |
38366 | Oil Pan Stud Kit |
93200 | Oil Pan Gasket, One Piece Design, Acura/Honda B Series |
22206 | B Series Oil Pump |
97003 | Oil Pan Drain Plug, Zinc Finish |
Emissions Warning
Products sold on this website may not be legal for use on public roads or highways due to Environmental Protection Agency (EPA) restrictions or California Air Resources Board (CARB) emissions regulations. Federal and State regulations may restrict Product installation to pre-emissions regulation (Model Year 1974 or earlier) or to competition/racing vehicles used exclusively in
1) events organized by recognized bodies, authorizing permits for participating drivers.
2) racing event qualification, and3) practice associated with events.
Installation of such products, including driving racing vehicles to and from the track, may be considered illegal “tampering ” or as “defeat device”, and may result in federal and state penalties. It is the purchaser’s responsibility to ensure compliance with all applicable emissions laws, including California’s stricter standards.
Proposition 65 Warning:
This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
- Sump Style:
- Wet
- Oil Pan Style:
- Street/Strip
- Sump Location:
- Rear
- Oil Pan Capacity:
- 4.00 quarts
- Stroker Clearanced:
- No
- Dipstick Provision:
- No
- Dipstick Included:
- No
- Oil Pan Depth (in.):
- 6.000 in.
- Material:
- Steel
- Finish:
- Clear zinc
- Baffled:
- Yes
- Kicked Out:
- No
- Windage Tray Included:
- Yes
- Pickup Included:
- No
- Oil Pump Included:
- No
- Oil Pump Driveshaft Included:
- No
- Crank Scraper Included:
- No
- Drain Plug Thread Size:
- 1/2 in.-20
- Gaskets Included:
- No
- Hardware Included:
- No
- Quantity:
- Sold individually.
- Notes:
- Includes magnetic drain plug and temperature sensor bung. Features sump baffle fully surrounding the oil pump pickup.
